XG(S)PON ONU Series is an optical network terminal product launched by our company for the needs of FTTH network construction, which include SF4020,HG4142X, HG3242A(V2) and HG3252X(V2).
  • XGPON ONU Series



Product Details

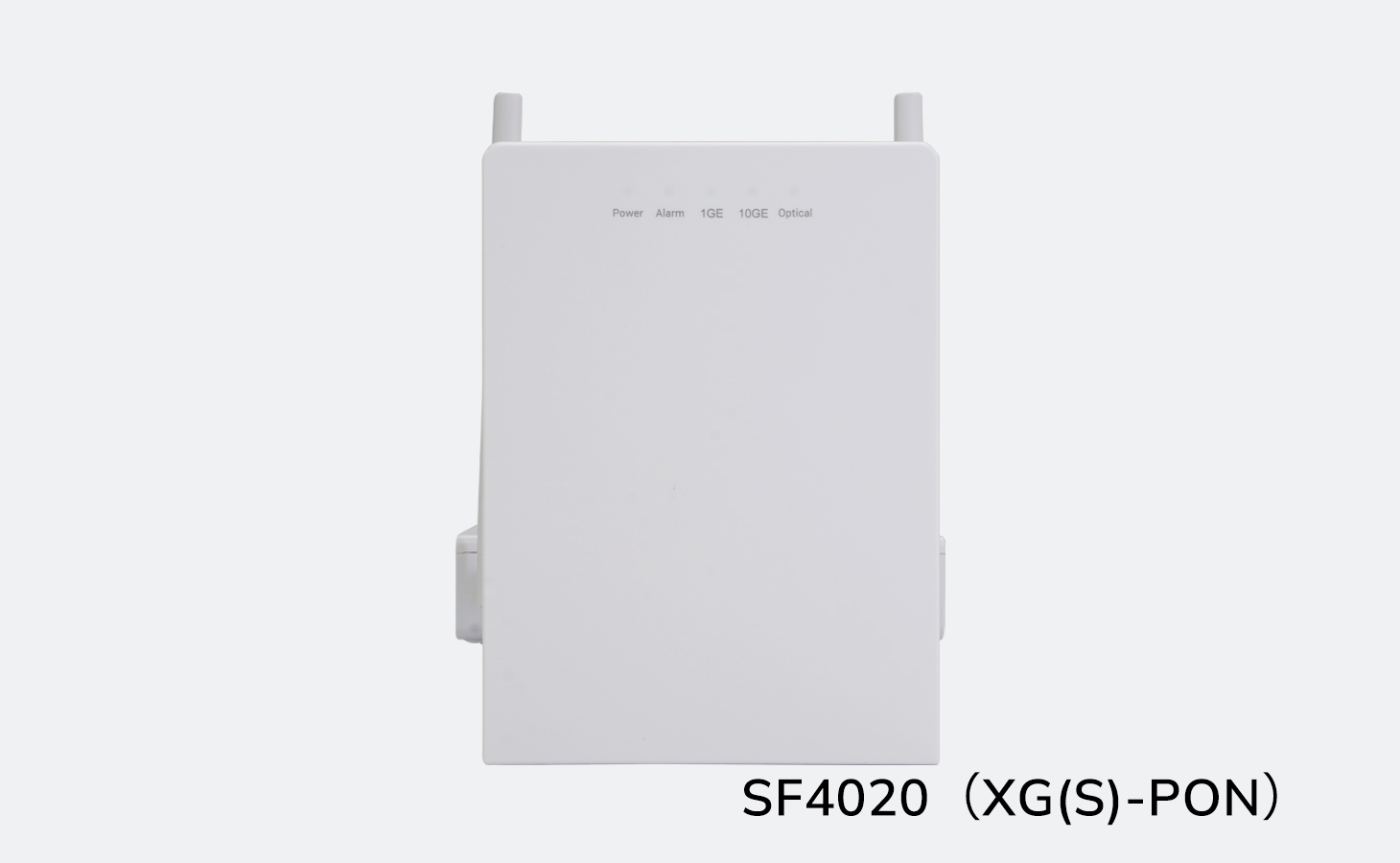

To deliver triple-play services to the subscriber in Fiber-to-the Home or Fiber-to-the-Premises application, the XGS-PON SFU (Single Family Unit) SF4020 incorporates interoperability, key customers' specific requirements and cost-efficiency. Equipped with ITU-T G.9807.1 compliant 10G Downstream and 10G Upstream XGS-PON interface, SF4020 supports the full Triple Play of services including voice, video, and high speed internet access service.

HG4142X 拷贝

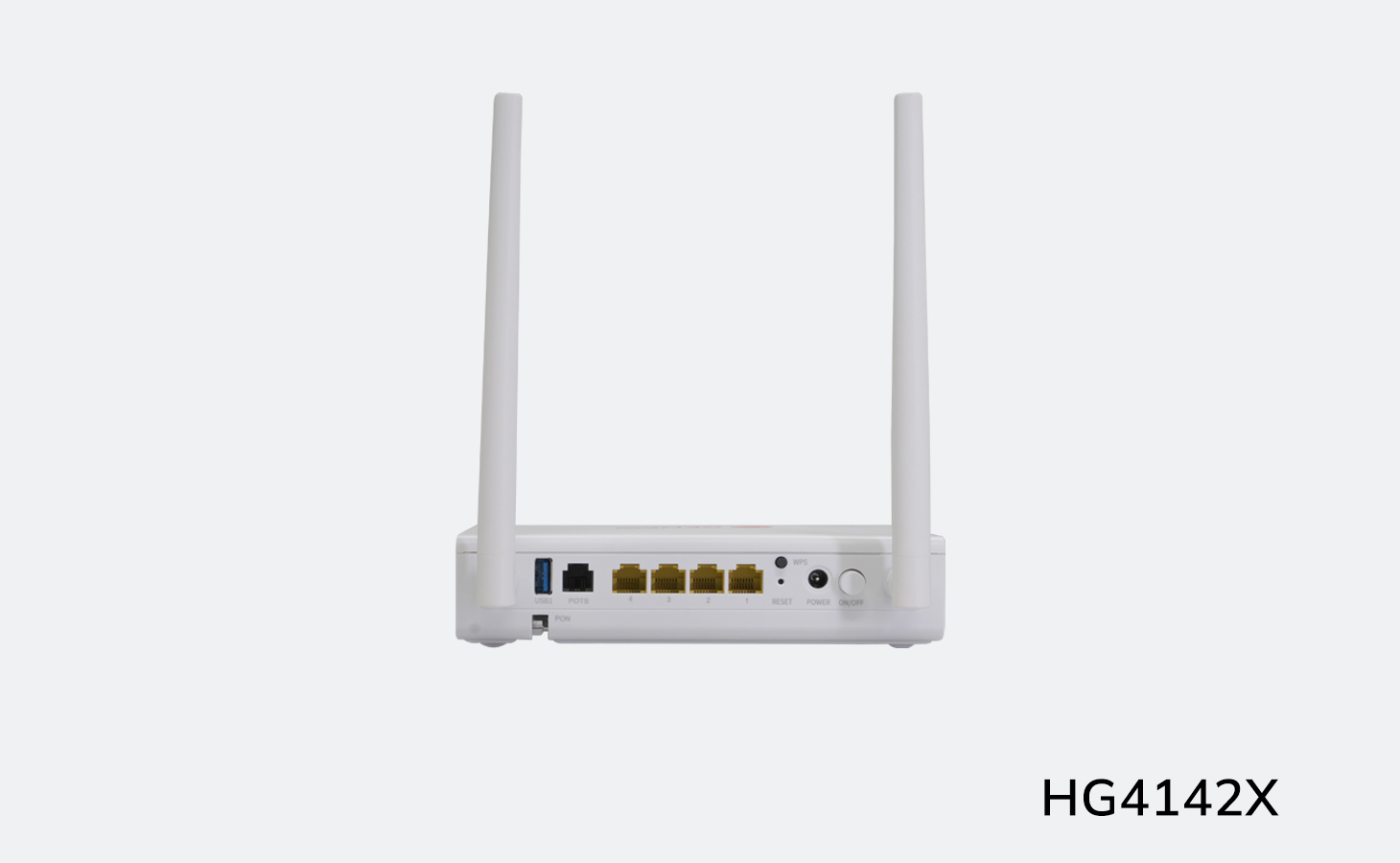

HG4142X is an optical network terminal product launched by our company for the needs of FTTH network construction.All functions and performances of ONT meet ITU G.987 series standards, international standards and industrial standards, and support local adaption.

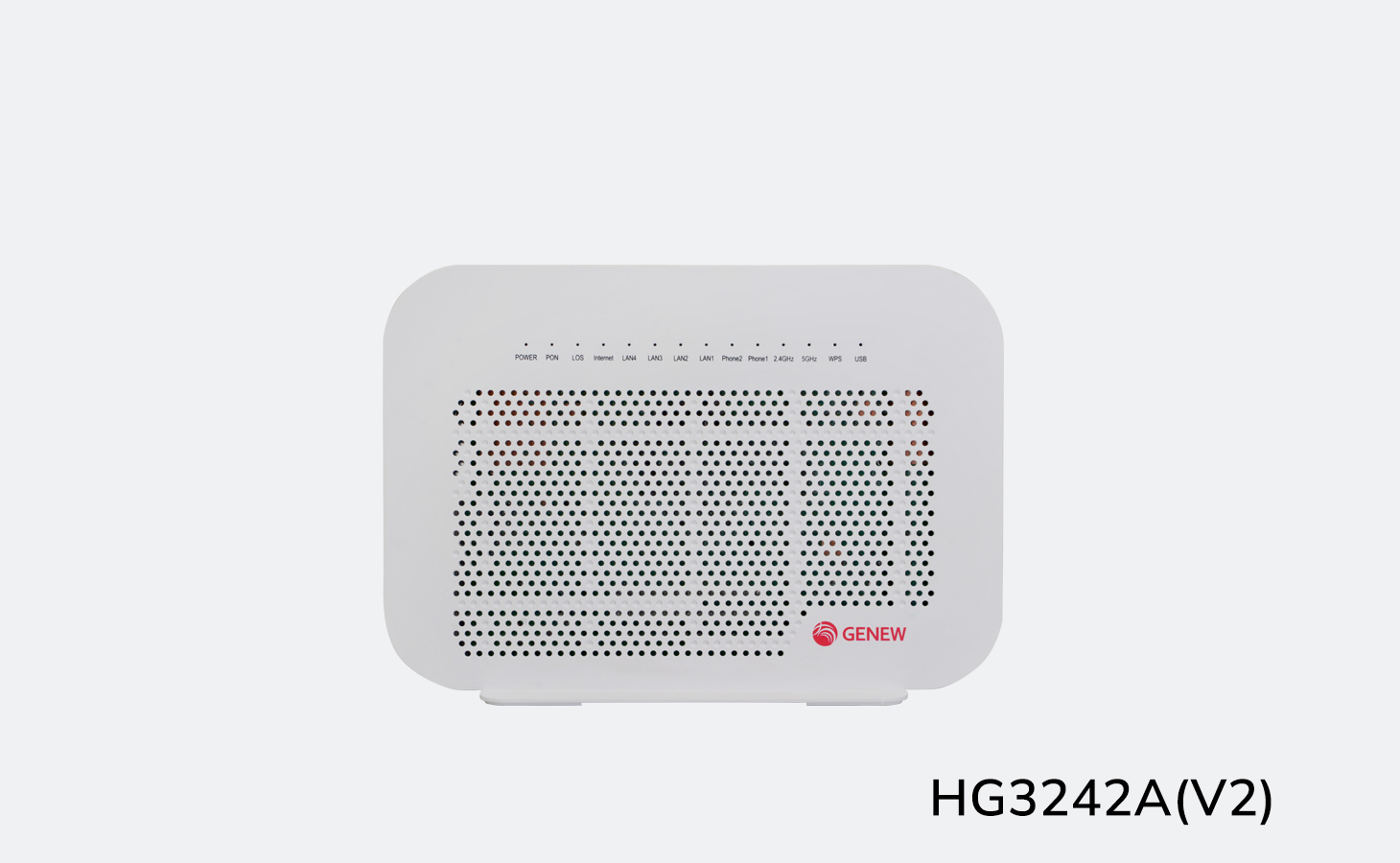

HG3242A(V2) HG3242A(V2) is a XGS-PON 4*GE+2*FXS+802.11 b/g/n/ac Home Gateway ONU. It is compliant with ITU-T G.9807 standard and has good compatiblity with main OLT in the market. It provides bandwidth with 10Gbps downstream and 10 Gbps upstream.

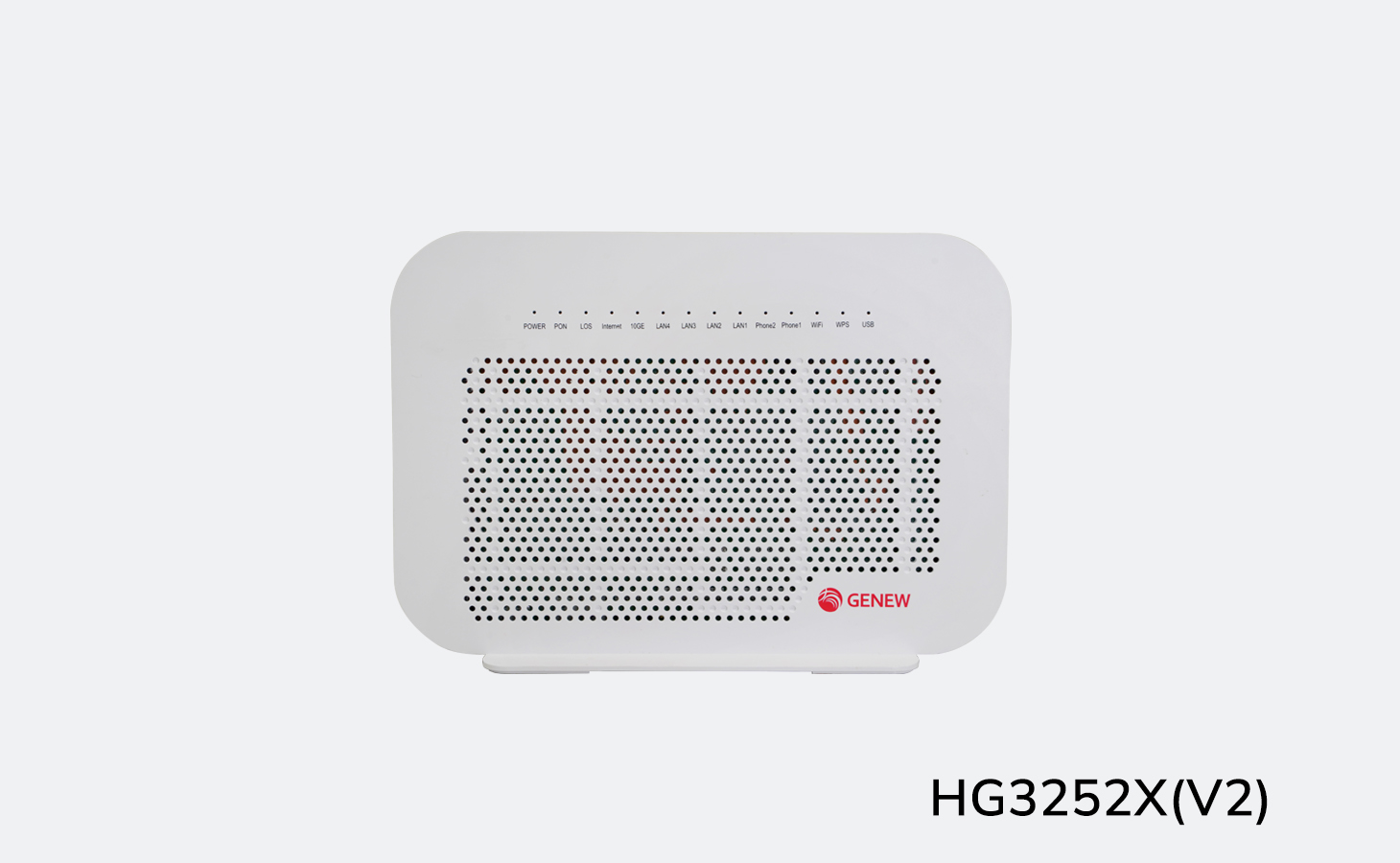

HG3252X(V2) HG3252X(V2) is an indoor optical network terminal (ONT) for 10G PON FTTH solution. The ultra-broadband access is provided for users, by using the XGS-PON and WiFi technologies. The maximum downstream rate reach to 10Gbps, maximum upstream rate reach to 10Gbps.

Product Vedio


  • 10G Downstream and 10G Upstream XGS-PON interface

  • one 10/100/1000 Base-T Ethernet data interfaces

  • Four 10 / 100 / 1000M adaptive Ethernet port full duplex / half duplex

  • Transmission distance is 20KM, and support data encryption

  • Up to 10Gpbs upload and download speed

  • Supports EMS remote management and configuration requirements based on either OMCI or OAM

  • Business priority division

  • Complete security mechanism

  • Branch wifi6, branch ieee 802a/b/g/n/ac/ax

  • Complete security mechanism


Dimensions(L × W × H, mm):110*30*150

Dimensions(L × W × H, mm): 172*140*40

weight: 0.4kg

Dimensions(L × W × H, mm): 242*30*162
Weight: 0.24kg
Dimensions(L × W × H, mm): 242*30*162
Power Supply
+12V (feed via external AC/DC adapter) 2-PIN power adaptor input Dying Gasp support Power switch Power Consumption: less than 10W
12V DC power supply interface
PON interface: Class N1/N2, SC/PC or S/APC
USB: 1*USB 3.0 host
Power Adapter: 12V DC, AC input: 100~240V AC, 50/60 Hz
Power Consumption: 30W(Maximum)
Power output :100-240V AC, 50/60Hz
Power input :12V/3A
Working Environment
Temperature: -5℃ ~ 45℃ Humidity: 20%~ 80% relative humidity
Operating temperature: -10~45℃ Storage temperature: -40~85℃ Working humidity: 10%~90% non-condensation storage humidity: 10%~90% non-condensation
Operating Temperature: -5~+50℃
Operating Humidity: 5%RH~95%RH
Desktop mounting & wall mounting
Working temperature:-5~40℃ Humidity:5%~95%Non condensing
