GPON ONU Series-WIFI5 is an optical network terminal product series launched by our company for the needs of FTTH network construction includes six products——GM2104G-WP、HG2042A、HG2142A、HG2242A、HG7142A、and HG7242A.
  • GPON ONU Series-WIFI5



Product Vedio

Product Details

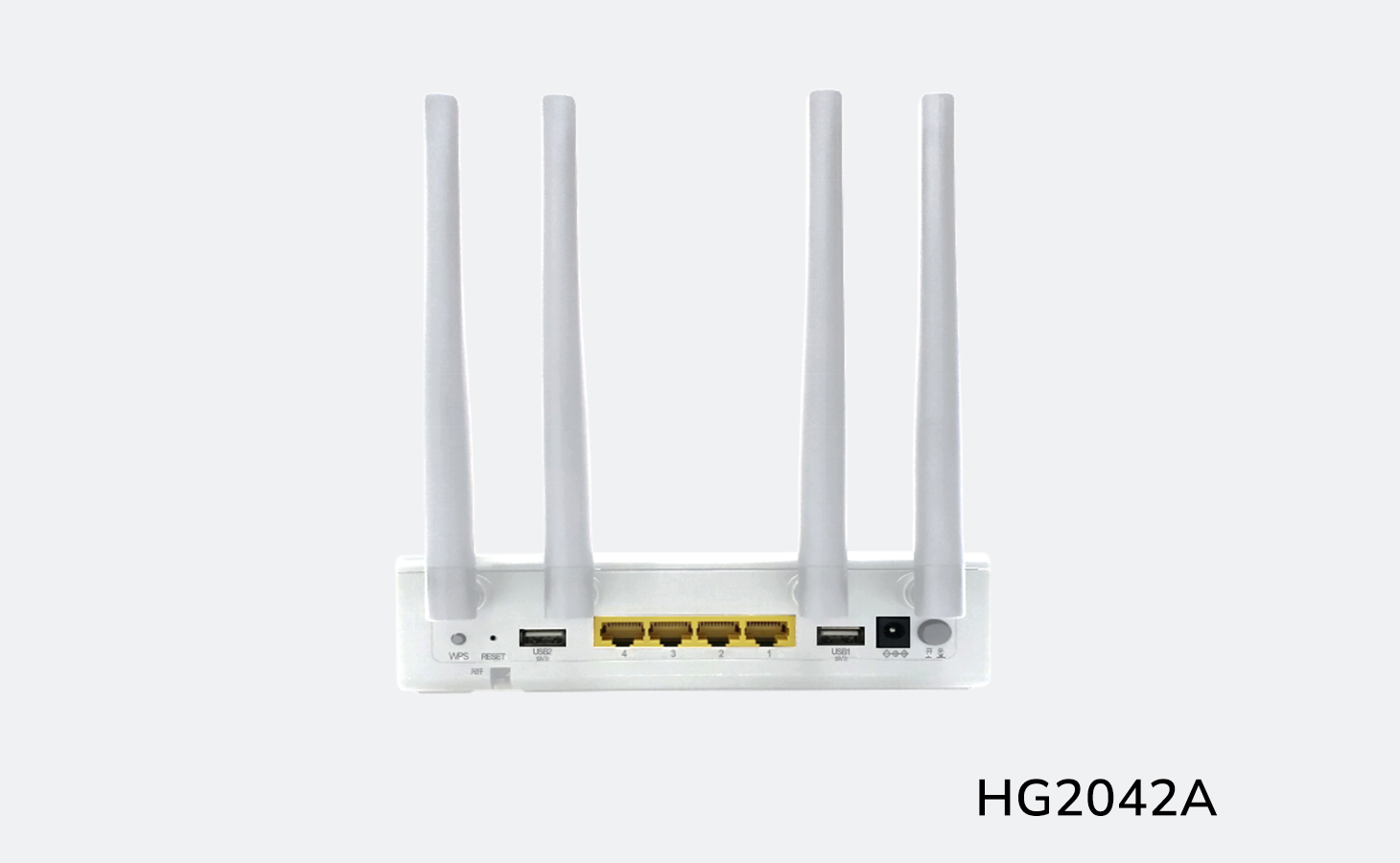

GM2104G-WP(GPON WIFI5)2 GM2104G-WP and HG2042A , all functions and performance of ONT meet IEEE802.3ah, CTC3.0 and ITU G.984 series standards, meet international standards and industry standards, and support GPON office adaptation。It has the characteristics of high reliability, good QoS guarantee, manageability, expandability, flexible networking, etc. It can well meet the user's needs for high-speed broadband access and wireless Internet access.
HG2142A HG2142A and HG2242A ONU is a highly integrated GPON integrated access equipment. The device provides high performance Data, and Video services for individual users, SOHO (small office or family office), small businesses, etc.

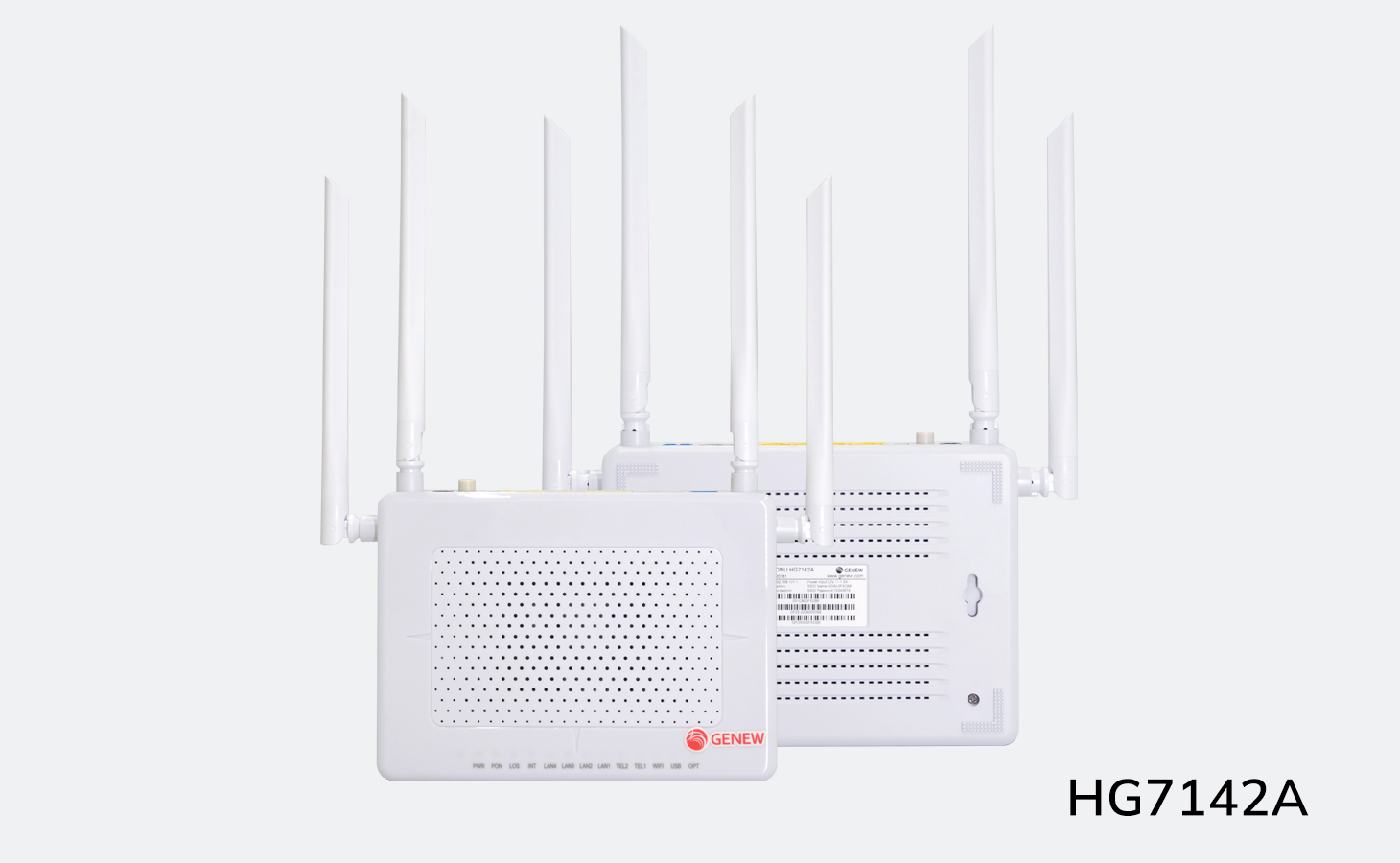

HG7142A-2 HG7142A features high-performance forwarding capabilities to ensure excellent experience with VoIP and Internet. It fully meets the ITU-T technical standards and have good compatibility with third party OLT. It provides a perfect terminal solution and future-oriented service supporting capabilities for FTTH deployment.

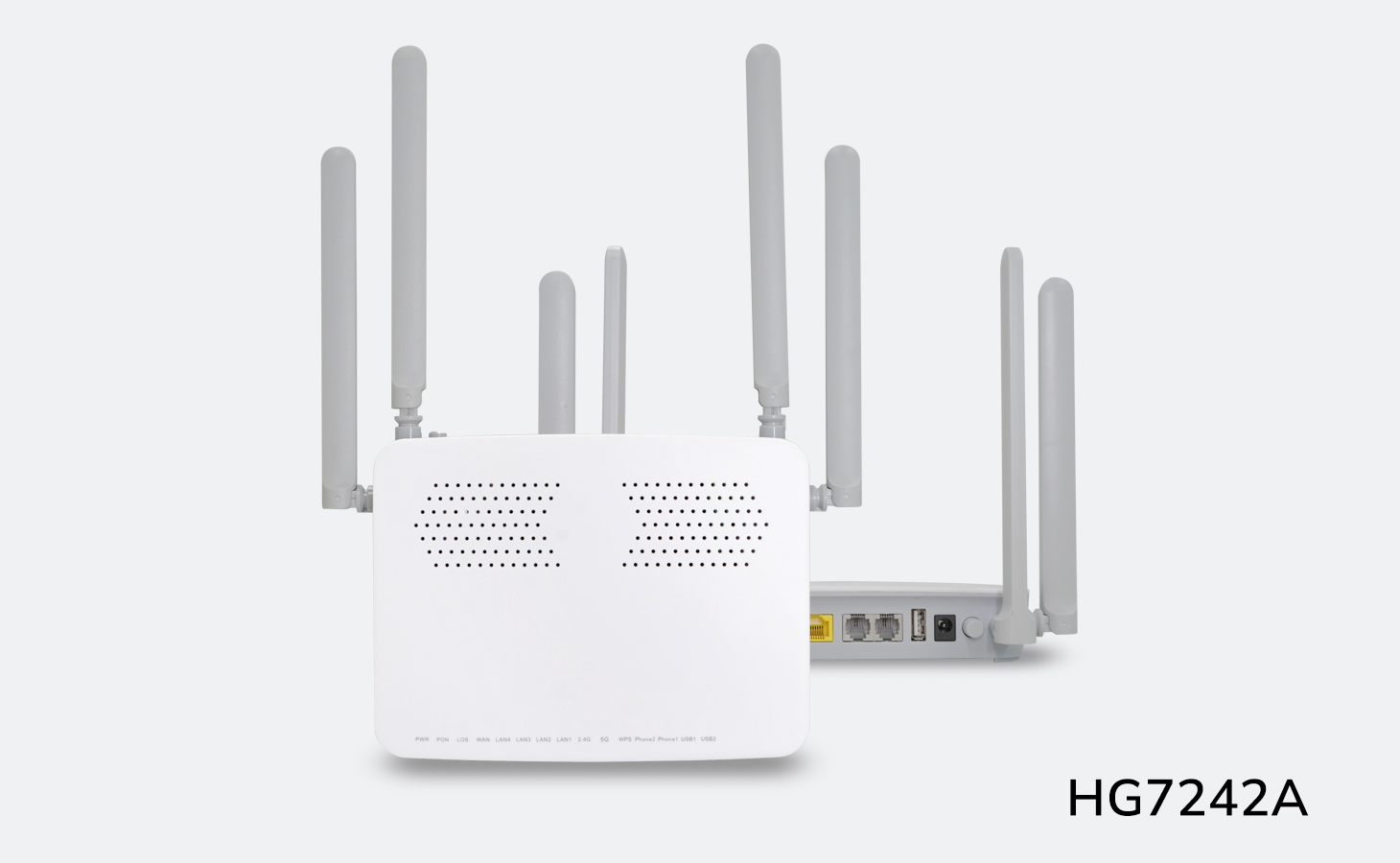

HG7242A is a G/EPON dual mode 4*GE+2*FXS+802.11 b/g/n/ac Home Gateway ONU. It is compliant with ITU-T G.984 and IEEE 802.3ah standard and has good compatiblity with main OLT in the market. It provides bandwidth with 2.5Gbps downstream and 1.25Gbps upstream in GPON mode and 1.25Gbps downstream and 1.25Gbps upstream in EPON mode. HG7242A integrates IAD for VoIP service and 802.11 b/g/n/ac WiFi module for wireless service. It provides the full triple-play of services including voice, video and high speed internet access service for FTTO (Office ) / FTTD (Desk) / FTTH (Home) / application.


  • Four 10 / 100 / 1000M adaptive Ethernet port full duplex / half duplex

  • Plug and play, integrate auto detection, auto configuration and auto firmware upgrading

  • Transmission distance is 20KM, and support data encryption

  • Up to 1.2Gbps wireless speed

  • Support downstream 2.488Gbps and upstream to 1.244Gbps with transmission distance to 20Km

  • Supports EMS remote management and configuration requirements based on either OMCI or OAM

  • Business priority division

  • Complete security mechanism

  • 2.4G Wi-Fi:Up to 300Mbps PHY rate

  • 5G Wi-Fi:Up to 866Mbps PHY rate


GM2104G-WP(GPON WIFI5)One PON interface;
GPON: uplink 1.25Gbps rate, downlink 2.5Gbps rate;
EPON: uplink 1.25Gbps rate, downlink 1.25Gbps rate SC single mode single fiber;
transmission distance: 20KM
HG2142A(GPON WIFI5)1* GPON port (SC/APC);
Data Rate: Downstream: up to 2.488Gbps;
Upstream: up to 1.244Gbps;
Receiving wavelength: 1,490 nm;
Transmitting wavelength: 1,310 nm;
Optical performancdes Class B+
HG7142A(GPON WIFI5)Dimensions(W x H x D, mm):204*127*33 (HG7142A) / 242*172*33 (HG7242A) ;

Weight: 0.22kg  (HG7142A) / 0.24kg (HG7242A)

PON interface: Class B+, SC/PC or S/APC

Power Adapter: 12V DC, AC input: 100~240V AC,50/60 Hz
Power Consumption: 7W(Maximum)
