GPON ONU Series-without WI-FI
GENEW
|
| |
Product Details
 | SF2010 supports the up-link and down-link symmetric 1G bps transmission rate, providing users with good QOS guarantee and flexible bandwidth allocation. Ethernet business and IP integrated services. providing users with more efficient data transmission guarantee. |

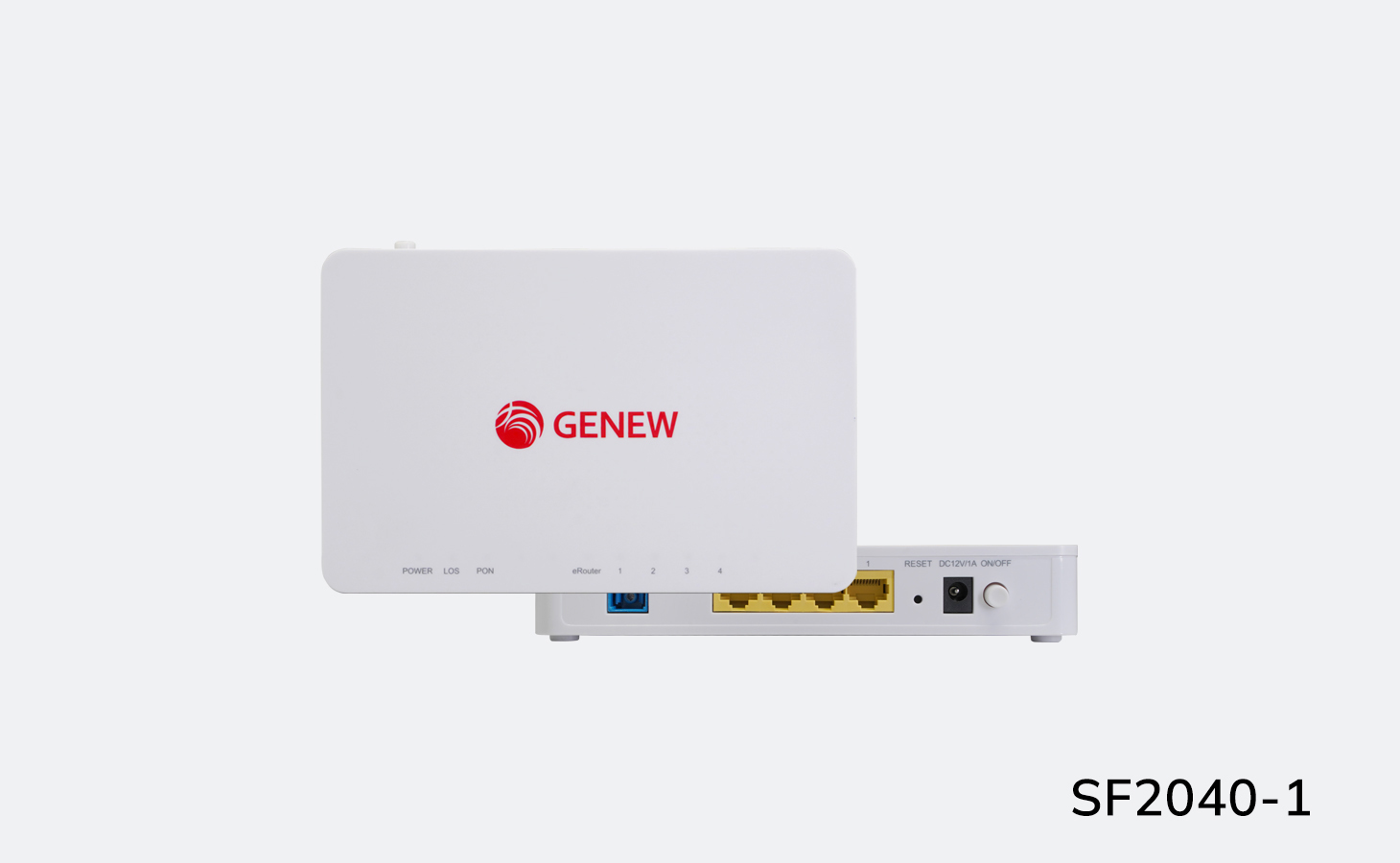

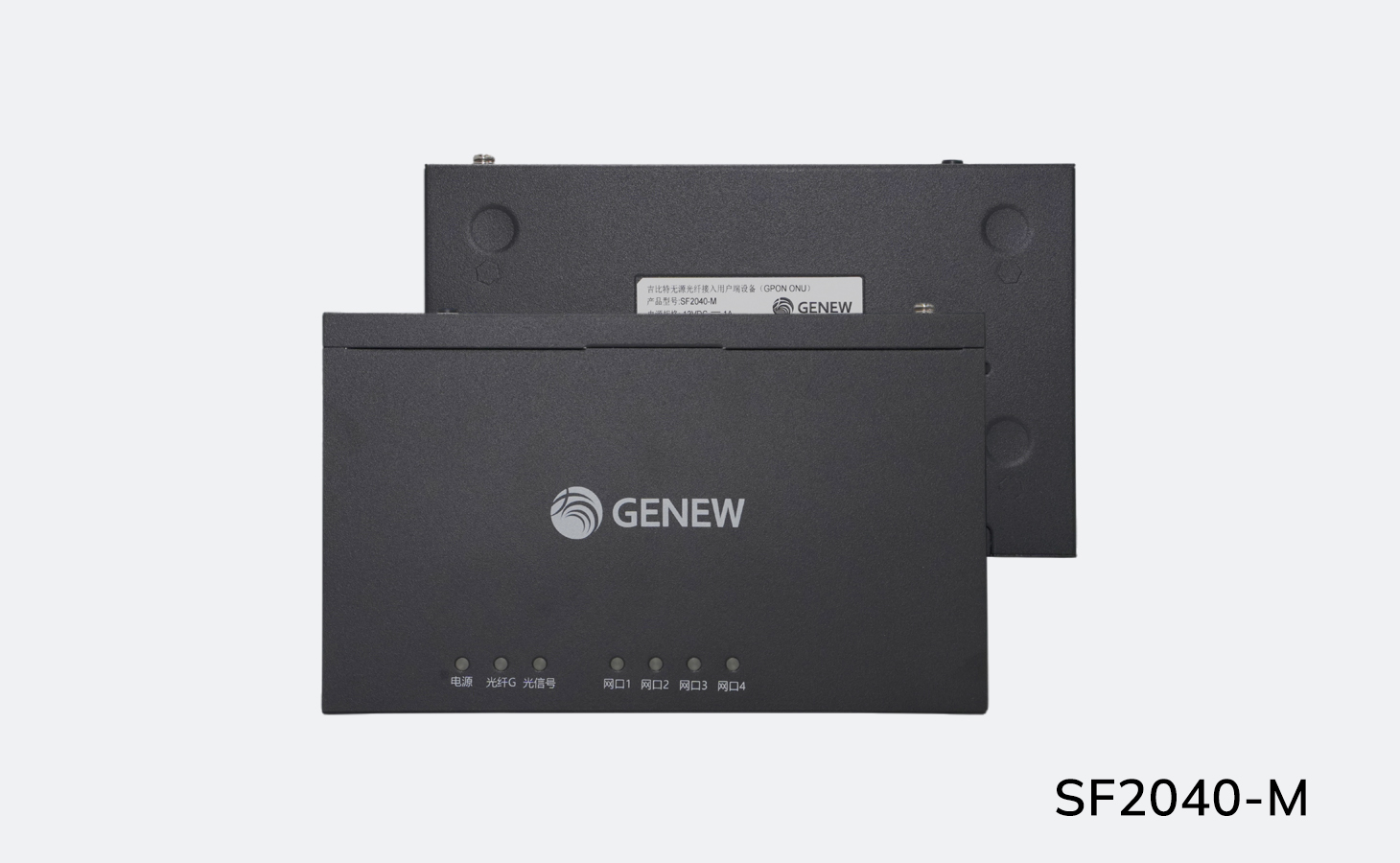

 | SF2040-1、SF2040、SF2040-M、SF2040-P is a broadband access market based on PON technology, which is designed to meet the needs of broadband access of radio and television operators and FTTH optical fiber to households. It is based on the mature and stable, cost-effective gigabit PON technology, the fusion of gigabit ethernet exchange technology has high reliability, easy management and good service quality (QoS) guarantee characteristics. |
 | HG7120 is a G/EPON dual mode 1*GE+1*FE+1*FXS Home Gateway ONU. |

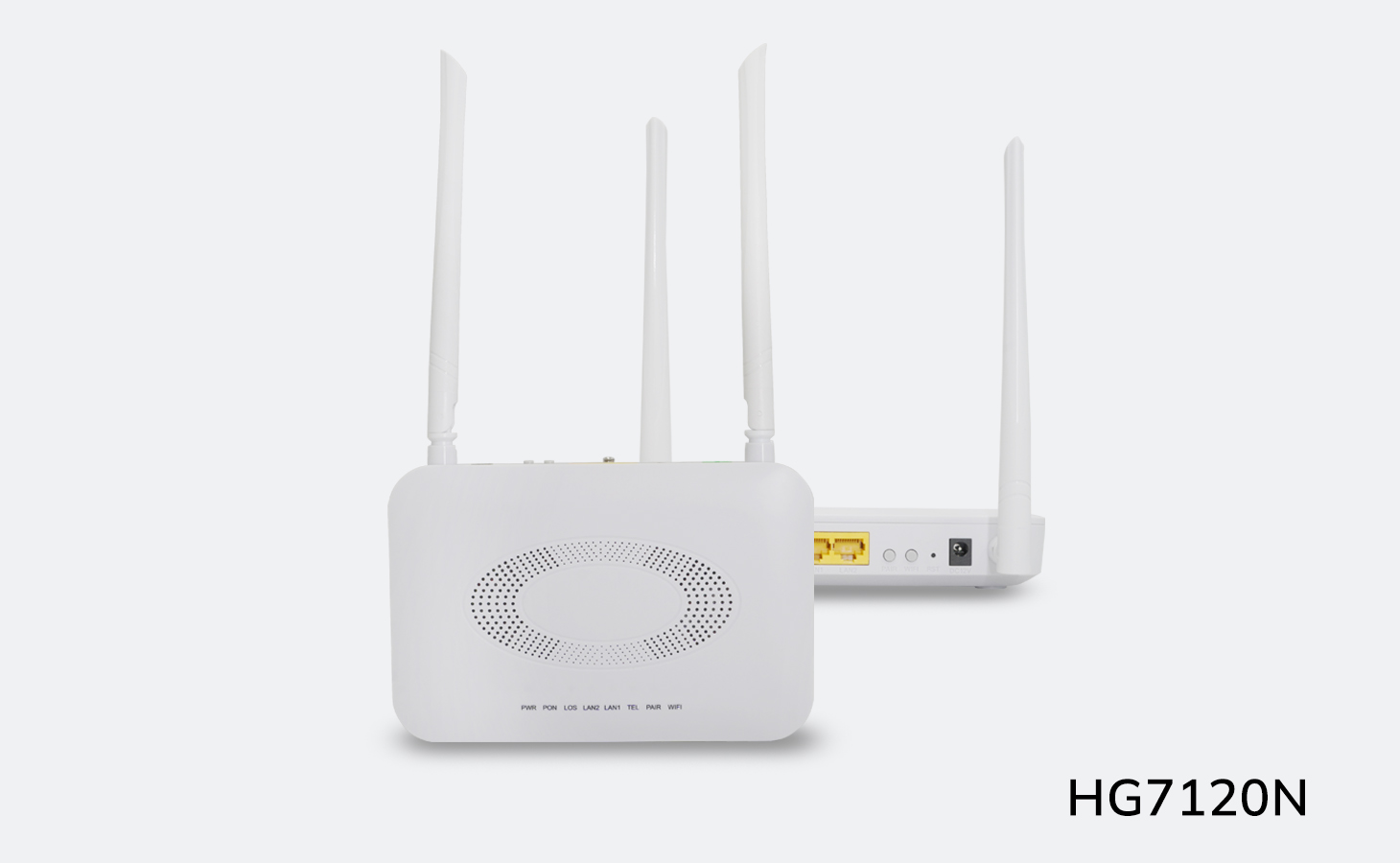

 | HG7120N is a G/EPON dual mode 1*GE+1*FE+1*FXS+802.11 b/g/n Home Gateway ONU. They are compliant with ITU-T G.984 and IEEE 802.3ah standard and has good compatiblity with main OLT in the market. It provides bandwidth with 2.5Gbps downstream and 1.25Gbps upstream in GPON mode and 1.25Gbps downstream and 1.25Gbps upstream in EPON mode. |
Product Vedio
Highlights
Four 10 / 100 / 1000M adaptive Ethernet port full duplex / half duplex
Transmission distance is 20KM, and support data encryption
Supports EMS remote management and configuration requirements based on either OMCI or OAM
Support VLAN TAG/UNTAG, VLAN conversion
Complete security mechanism
APP is simple configuration
Business priority division
Complete security mechanism
Business priority division
Specifications
| Project | Parameter | SF2010 | SF2040 | SF2040-1 | SF2040-M | SF2040-P | HG7120N | HG7120 |
| Interface Specifications | PON Interface | 1 GPON/EPON auto-adaptive interface, SC single-mode/single-fiberWork as GPON:Upstream rate 1.25GbpsDownstream rate 2.5GbpsWork as EPON:Upstream rate 1.25GbpsDownstream rate 1.25Gbps | One PON interface GPON: uplink 1.25Gbps rate, downlink 2.5Gbps rate EPON: uplink 1.25Gbps rate, downlink 1.25Gbps rate SC single mode single fiber transmission distance: 20KM | One PON interface GPON: uplink 1.25Gbps rate, downlink 2.5Gbps rate EPON: uplink 1.25Gbps rate, downlink 1.25Gbps rate SC single mode single fiber transmission distance: 20KM | One PON interface GPON: uplink 1.25Gbps rate, downlink 2.5Gbps rate EPON: uplink 1.25Gbps rate, downlink 1.25Gbps rate SC single mode single fiber transmission distance: 20KM | One PON interface GPON: uplink 1.25Gbps rate, downlink 2.5Gbps rate EPON: uplink 1.25Gbps rate, downlink 1.25Gbps rate SC single mode single fiber transmission distance: 20KM | PON interface: Class B+, SC/PC or S/APC | |
| Special Properties | Power supply, Power consumption | ≤ 3W DC 12V 0.5A | <12W 12V / 1A Power Adapter | <12W 12V / 1A Power Adapter | <12W 12V / 1A Power Adapter | <12W 12V / 1A Power Adapter | Power Adapter: 12V DC, AC input: 100~240V AC, 50/60 Hz Power Consumption: 7W(Maximum) | |
| Size, weight | Equipment size: 104mm x 70mm x 22mm(L x W x H) | Equipment size: 176mm × 113mm × 31mm（L × W × H) Equipment weight: 0.45kg | Equipment size: 176mm × 113mm × 31mm（L × W × H) Equipment weight: 0.45kg | Equipment size: 190mm×115mm×25mm（L × W × H) Equipment weight: 0.7kg | Equipment size: 176mm × 113mm × 31mm（L × W × H) Equipment weight: 0.45kg | Equipment size: 160mm x140mm x29mm（W x H x D） Weight: 0.190kg | ||
| enviromental parameter | Operating temperature: 0°C~50°CStorage temperature: -40°C~70°COperating Humidity: 10%~90%, non-condensingStorage Humidity: 5%~90% non-condensingCertifications: CE, RoHS | Operating temperature: -5~55℃ Storage temperature: -40~85℃ Working humidity: 10%~90% non-condensation storage humidity: 10%~90% non-condensation | Operating temperature: -5~55℃ Storage temperature: -40~85℃ Working humidity: 10%~90% non-condensation storage humidity: 10%~90% non-condensation | Operating temperature: -5~55℃ Storage temperature: -40~85℃ Working humidity: 10%~90% non-condensation storage humidity: 10%~90% non-condensation | Operating temperature: -5~55℃ Storage temperature: -40~85℃ Working humidity: 10%~90% non-condensation storage humidity: 10%~90% non-condensation | Operating Temperature: -5~+50℃ Operating Humidity: 5%RH~95%RH | ||
Typical Applications
The GPON ONU Series without Wi-Fi can be deployed in residential FTTH networks, providing stable optical access and Ethernet connectivity for home broadband users.
For ISPs and broadband service providers, the series provides flexible ONU options for large-scale fiber access network deployment and user-side terminal installation.
The series can also be used in enterprise broadband, building access and FTTB scenarios where optical fiber access and stable Ethernet connectivity are required.
For operators upgrading legacy broadband access networks, GPON ONU products without Wi-Fi provide a cost-effective terminal option for fiber access deployment.
Q1: What is a GPON ONU without Wi-Fi?
A GPON ONU without Wi-Fi is an optical network unit used in FTTH or optical access networks. It connects the optical fiber access network to user-side Ethernet or voice services without providing built-in wireless Wi-Fi functions.
Q2: Where can GPON ONU products without Wi-Fi be used?
They can be used in residential FTTH, ISP broadband access, enterprise access, building access and operator fiber network deployment scenarios.
Q3: What is the difference between a GPON ONU with Wi-Fi and without Wi-Fi?
A GPON ONU with Wi-Fi provides wireless access functions, while a GPON ONU without Wi-Fi mainly provides optical fiber access, Ethernet ports and sometimes voice interfaces. The non-Wi-Fi version is suitable for scenarios where users already have separate routers or where operators want a simpler terminal.
Q4: Does this series support GPON and EPON?
Some models in the series support GPON/EPON dual-mode access. The exact access mode depends on the selected model and project requirements.
Q5: Can Genew provide related OLT and FTTx solutions?
Yes. Genew provides optical access network products and FTTx solution capabilities, including GPON ONU, XGPON ONU, XG(S)-PON ONU, FTTR ONU, OLT products and related access network solutions.
