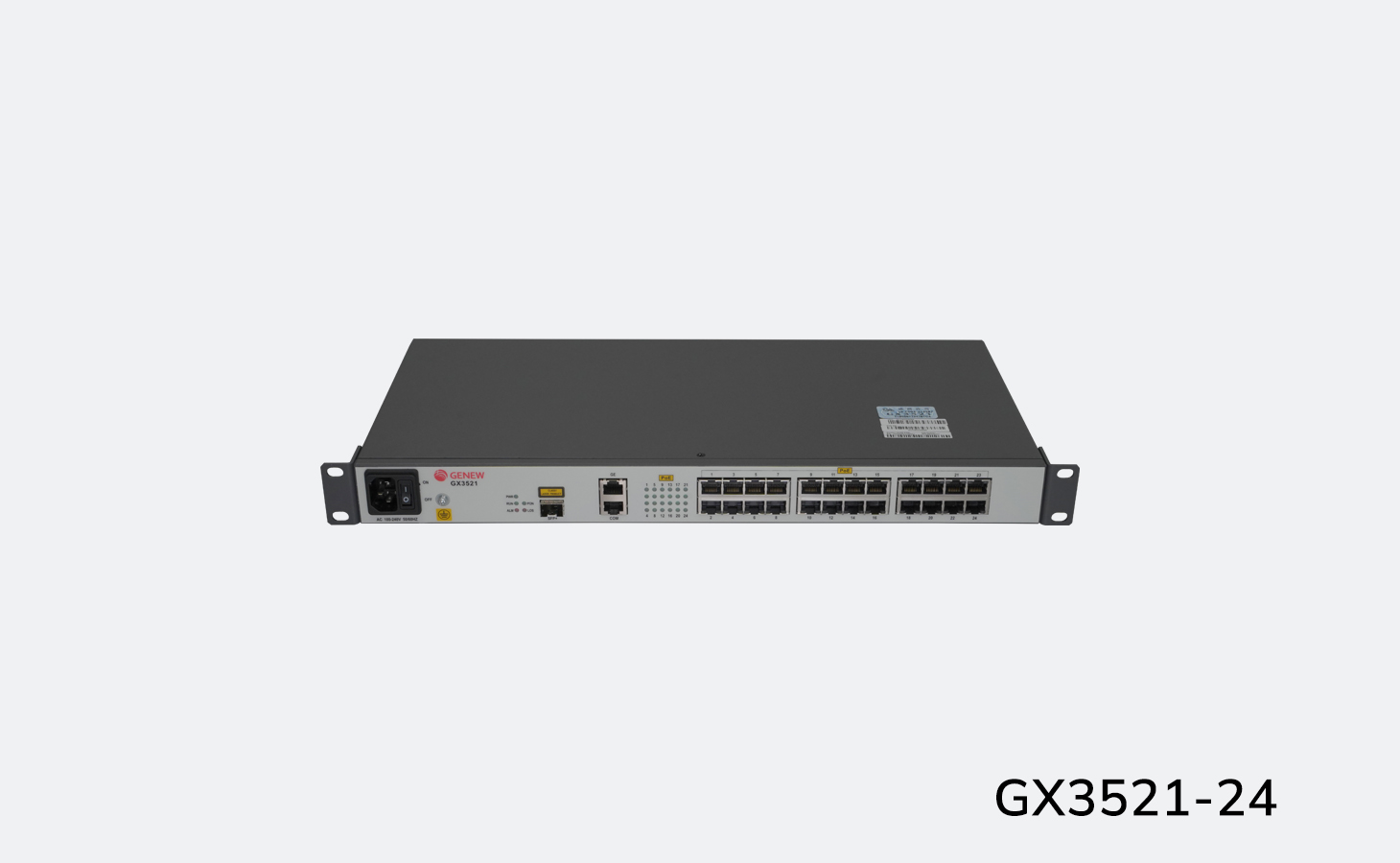

MDU-3521 Series

GX3521 Series is a multi-service access device which applies to FTTB (Fiber To The Building) or FTTC (Fiber To The Curb) network applications for providing VOIP, Internet, HD video services and quality of service (QoS) assurance solution for enterprise or community users. The device supports flexible uplink port with pluggable GPON/XGPON/XGSPON ONU SFP module and provides up to 10Gbps in upstream/downstream transmission. It is compliant with the latest GPON/XG(S)-PON standard ITU G.984/G.987/G.988/G.9807 and have good compatiblity with main OLT in the market.

  • MDU-3521 Series

  • GENEW

Availability:

Product Vedio

Highlights

  • Support pluggable GPON/XGPON/XGSPON ONU SFP

  • Support VLAN/VLAN translation/VLAN stack

  • Support IGMP snooping/proxy

  • Support L2~L7 ACL

  • Support anti-attack

  • Support loop detection

  • Support port isolation

  • Support remote diagnosis

  • Support WEB/TELNET/OMCI managment

  • Support POE/POE

Specifications

Product ModelGX3521-24GX3521-16GX3521-8
Dimensions(W x H x D, mm)442*220.4*44.4(Without ears)442*220.4*44.4(Without ears)442*220.4*44.4(Without ears)
Weight3.15kg(Without ears)3.15kg(Without ears)3.15kg(Without ears)
Power AdapterInput 100~240V AC，50/60 HzInput 100~240V AC，50/60 HzInput 100~240V AC，50/60 Hz
Maximum Input Current2.5A/220VAC2.5A/220VAC2.5A/220VAC
Power Consumption470W(Maximum)470W(Maximum)470W(Maximum)
Operating Temperature-10~+55℃-10~+55℃-10~+55℃
Operating Humidity5%RH~95%RH5%RH~95%RH5%RH~95%RH
GE Ports24168
POE Ports24168
