You are here: Home / Products / Optical Access Network / 10G PON/GPON OLT / Pizza Box OLT GX3100 Series

Products

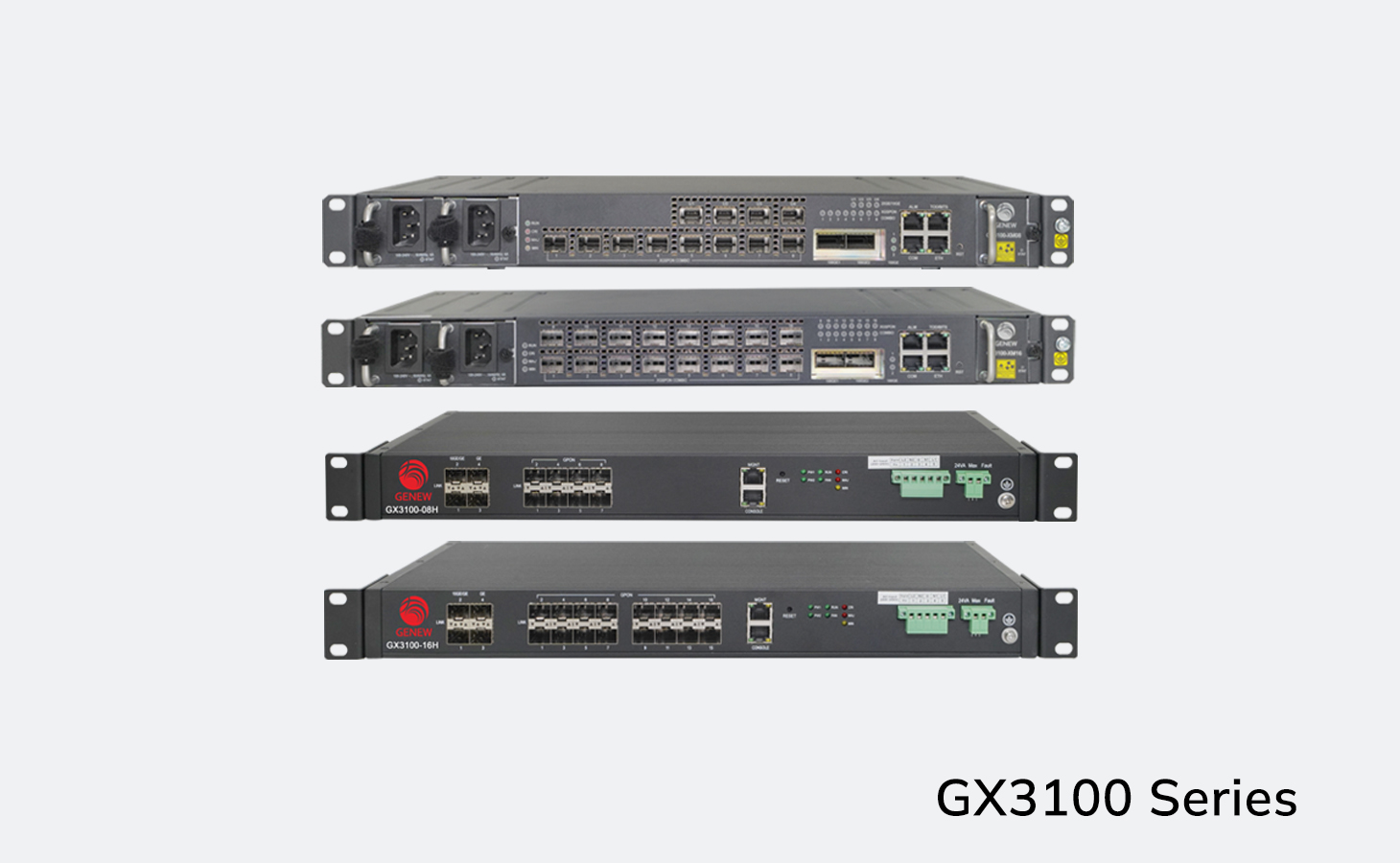

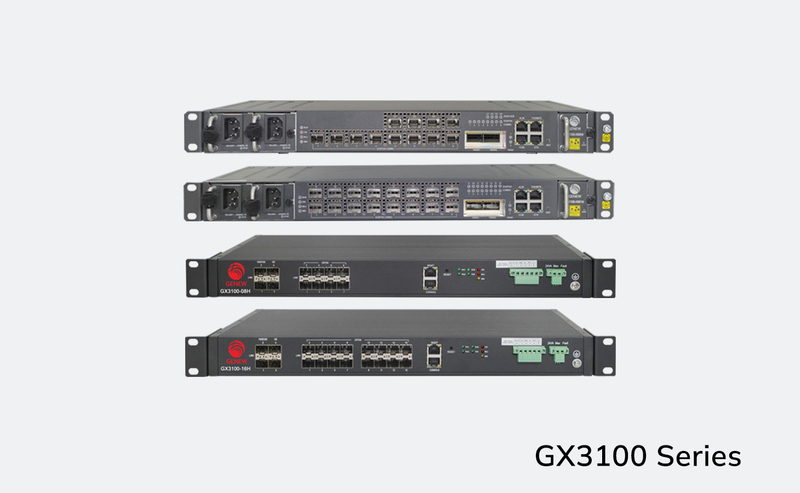

Pizza Box OLT GX3100 Series

As a next-generation converged PON technology, GPON/10GPON OLT GX3100 series products provide GPON, XG-PON, XGS-PON, Combo PON access, and 100GE/25GE/10GE/GE uplinks. The device can be deployed in FTTH, FTTB, FTTC, FTTD, FTTM scenarios to provide service for residential subscribers, business customers, mobile and fixed backhauling, Wi-Fi hotspot backhaul, etc.
  • GX3100 Series

  • GENEW

Availability:

Product Video

Highlights

Specifications

Product ModelGX3100-XM08/XM16GX3100-08H/16HGX3100-08/16

GX3100-08C/16C

Dimensions (mm)(WxDxH)482x244x44(19-inch width,1U Height)482*210*44(19-inch width,1U Height)482*293*44 (19-inch width,1U Height)08C: 482*260*44

16C: 482*320*44

(19-inch width,1U Height)

Weight4.6kg / 4.8kg3.2kg / 3.3kg4.7kg / 4.8kg5.0kg / 6.5kg
Switch Capacity800 Gbps84 Gbps / 124 Gbps84 Gbps /124 Gbps128 Gbps /176 Gbps
Power SupplyDC/AC(1+1 redundancy)DC/AC(1+1 redundancy, Fixed)DC/AC (1+1 redundancy)

DC/AC

(1+1 redundancy)

-48V DC-48V DC-48V DC-48V DC
110V AC/220V AC110V AC/220V AC110V AC/220V AC110V AC/220V AC
Typical Consumption148 W / 120W36 W /50W36 W / 50W

65 W / 100 W

Heat DissipationFANPassive Cooling (without FAN)FAN (Pluggable)FAN (Fixed)
xPON Port No.8/168/168/168/16
Uplink Capacity100GE/25GE/10GE2*10GE/GE + 2*GE2*10GE/GE + 2*GE

08C: 4*10GE/GE+4*1000Base-T

16C: 4*10GE/GE+8*1000Base-T

Split Ratio1:1281:1281:1281:128
MAC Address No.250KUp to 32KUp to 32KUp to 64K
Storage temperature-40 ℃ to 70℃-40 ℃ to 70℃-40 ℃ to 70℃

-40 ℃ to 70℃

Operating Relative Humidity10% to 90%(non-condensing)10% to 90% (non-condensing)10% to 90% (non-condensing)10% to 90% (non-condensing)
Storage Relative Humidity
5% to 95% (non-condensing)5% to 95% (non-condensing)5% to 90% (non-condensing)5% to 95% (non-condensing)



Typical Application

FTTB - Apartment blocks, large office building, gathered cable customers
FTTH - Residential area, family broadband customers
FTTR - villa / penthouse high-end customers
FTTM - 4G/5G base station and small cell backhaul
POL - campus, hospital, hotel, enterprise, etc.
