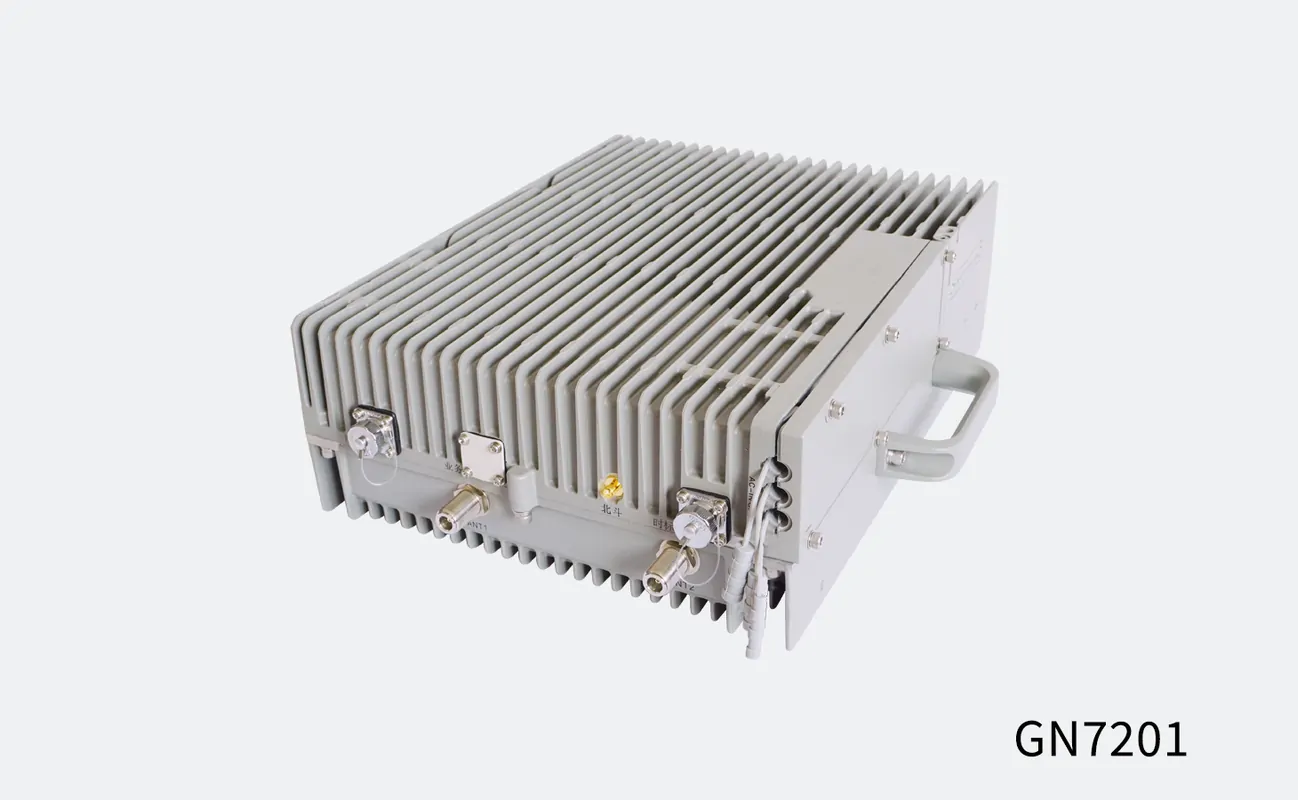

GN7201 5G Integrated gNodeB

Based on the advanced multi-core ARM and FPGA solution, this product adopts the integration of 5G BBU and RRU to realize the complete 5G NR wireless access function. It can quickly provide customers with a 5G wireless coverage network with carrier-level reliability. It is a type of 2T2R base station based on 5G NR technology, and supports 2*2 MIMO with the maximum transmission power 40dBm/channel.
This product has the advantages of low power consumption, small size, and convenient engineering construction, and is especially suitable for applications in 5G+ vertical industries such as smart manufacturing, smart mines, and smart parks. The product can be deployed indoors and outdoors.
  • GN7201 5G Integrated gNodeB

  • GENEW

Availability:

Highlights

  • ALL-IN-ONE 5G integrated small base station, integrated design of baseband and radio frequency.

  • Low cost, easy deployment, flat network architecture, no need to rebuild the equipment room and transmission network.

  • Reliable security services that provide instant protection for devices against potential security risks and illegal intrusions.

  • With perfect and convenient network management functions, the management, monitoring and maintenance of equipment can be realized in the network management system.

Specifications

SpecificationGN7201
Size(H*W*D)135*310*400mm
Duplex ModeFDD
Output Power2 * 43dBm
MIMODL 2*2
Frequency BandN28 UL,708Mhz~748Mhz;DL,763Mhz~803Mhz
Carrier Bandwidth40MHz/30MHz/20MHz/15MHz/10MHz/5MHz
Modulation256QAM/64QAM(DL/UL)
Network ArchitectureSA
Weight<17.5KG
CapacitySupport one 2T2R cell with 40MHz bandwidth


Genew Technologies Co., Ltd., established in 2005, is a global system provider of end-to-end communication solutions and telecom infrastructures, it is listed on the Shanghai Stock Exchange (Stock Code: 688418.SS).
