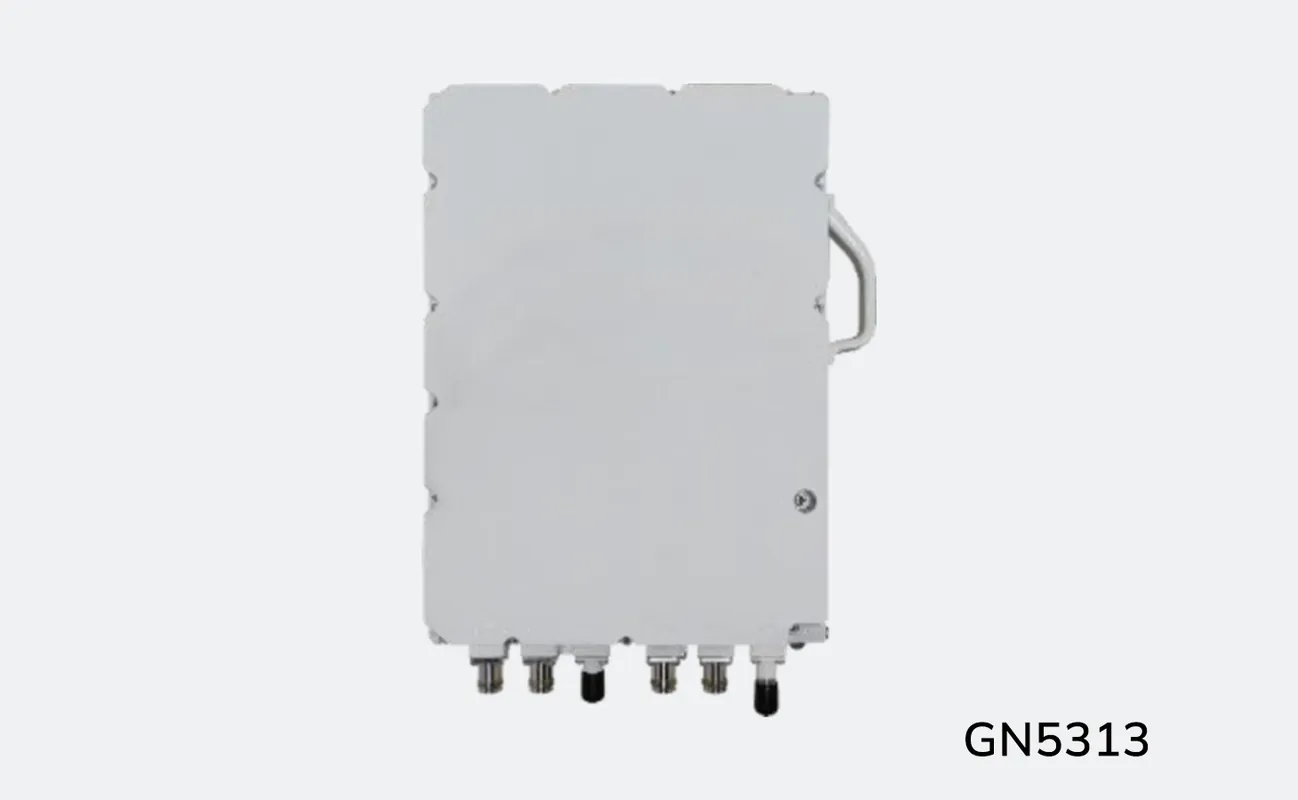

GN5313 Outdoor LTE TDD eNodeB

GN5313 is an advanced two-carrier and high power outdoor 4T4R base station based on LTE technology. It provides LTE access to user terminals. It supports 4x4 MIMO with the maximum transmission power 46dBm/channel and modulation scheme 256QAM. This 4x40W eNodeB operates in either Carrier Aggregation (CA) mode or Dual Carrier (DC) mode. It supports GPS synchronization mode.

  • GN5313 Outdoor LTE FDD eNodeB

  • GENEW

Availability:

Highlights

Baseband & RF High Integration
High Output power
Fast Deployment
High Investment Efficiency

Specifications

SpecificationGNB5313
Size(H*W*D)
125*415*310mm
Tx/Rx4T4R
Output Power4*40W
Support Band
TDD LTE B40/B41/B42
Support Cells
2*LTE (5/10/15/20M)
Maximum Concurrent256 concurrent users/cell
Power Supply110-240V AC or -48V DC
Power Consumption
520W
Weight
14Kg
Clock Mode1588/GPS/BDS
