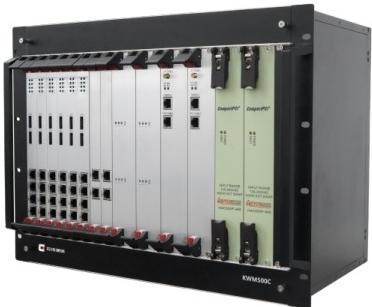

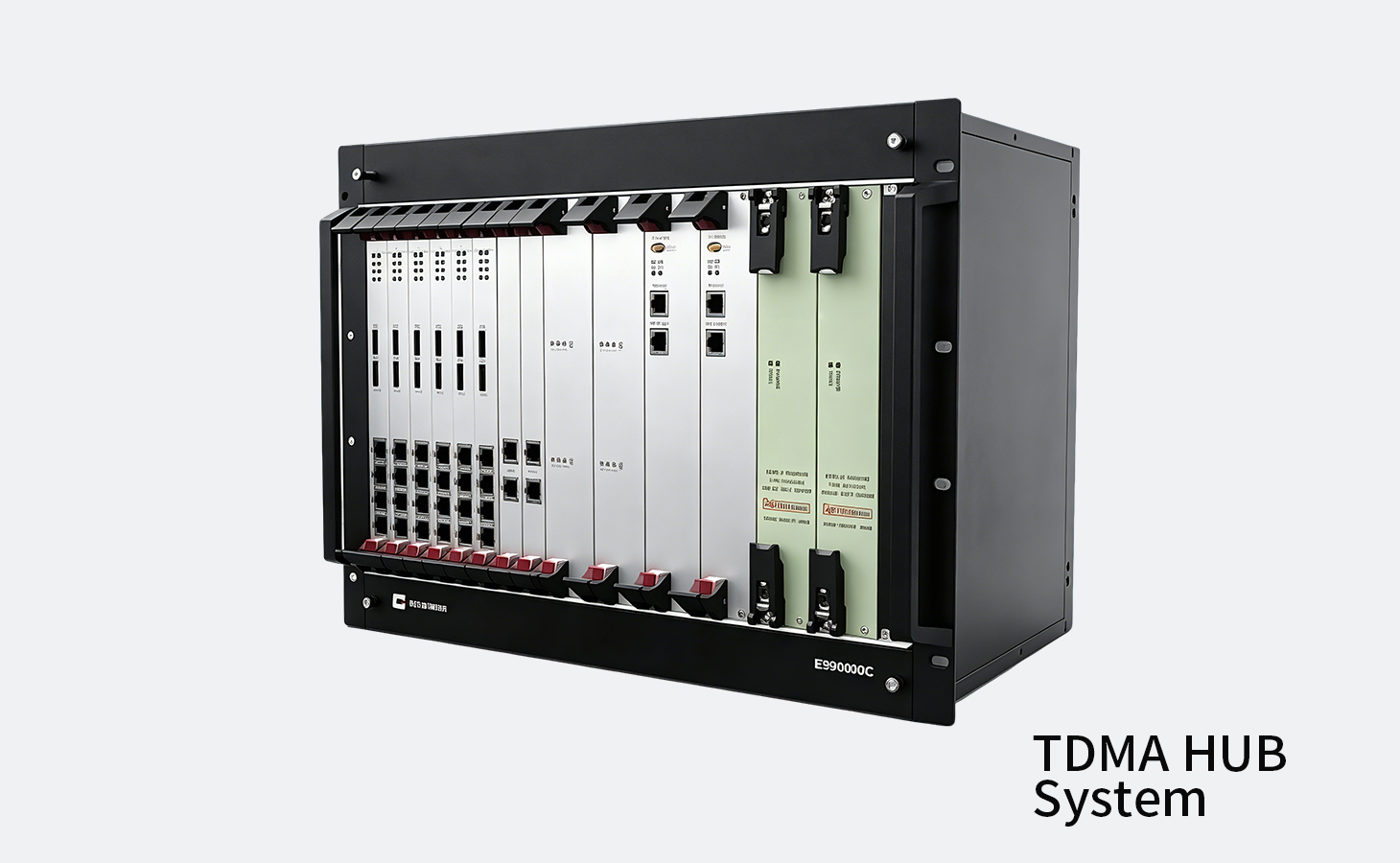

TDMA HUB System

TDMA Hub Modem adopts standard CPCI case structure, with highly integrated equipment and all functional modules of the
system buil-in. The main station is highly scalable, and supports multiple user networks and up to three different satellites or
frequency bands. In addition, itis based on the DVB-RCS2 standard and supports star and hybrid satelite networks, which can
be flexibly configured by users according to the network scale and service requirements, and is suitable for common satellite
communication scenarios such as large-scale system networking and high-speed satellite Internet.

  • TDMA HUB System

  • GENEW

Availability:

Product Description

The TDMA HUB System is a highly integrated satellite communication main station built on a standard CPCI chassis, fully compliant with the DVB-RCS2 international standard. It supports flexible networking for star and hybrid satellite networks, featuring telecom-grade redundant design, NS-level high-precision system timing, and a total throughput of 1Gbps forward / 500Mbps return. Compatible with DVB-S2X, TDMA, TDD, and spread spectrum multi-waveform access, this scalable system adapts to multi-satellite and multi-band deployment, perfectly meeting the demands of large-scale system networking and high-speed satellite Internet scenarios, delivering stable and efficient core solutions for satellite communication.

Product Feature

Telecom-grade redundancy design Backup for channel/clock/power boards

Supports NS-level high-precision system timing

Supports forward 1Gbps / return 500Mbps in total

Supports Multi-Waveform Access DVB-S2X / TDMA / TDD / Spread Spectrum

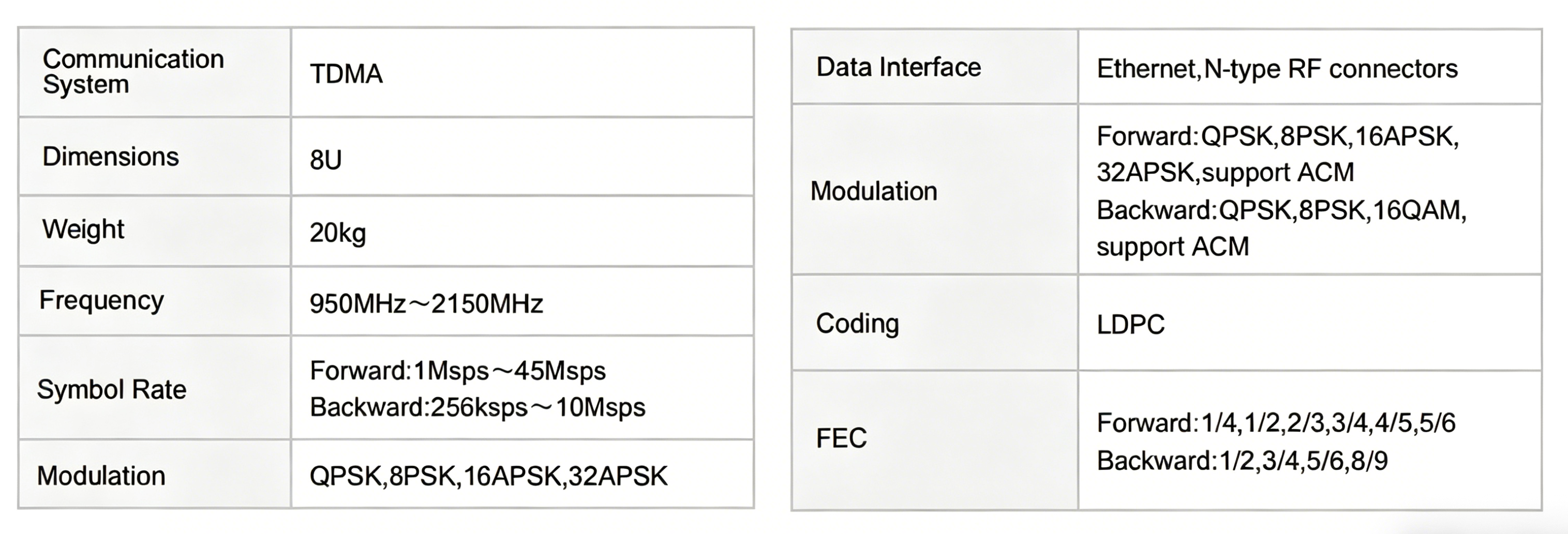

Technical Parameter
