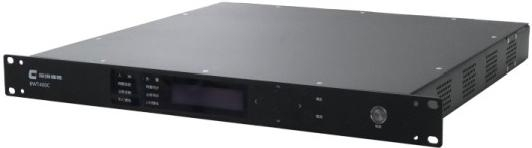

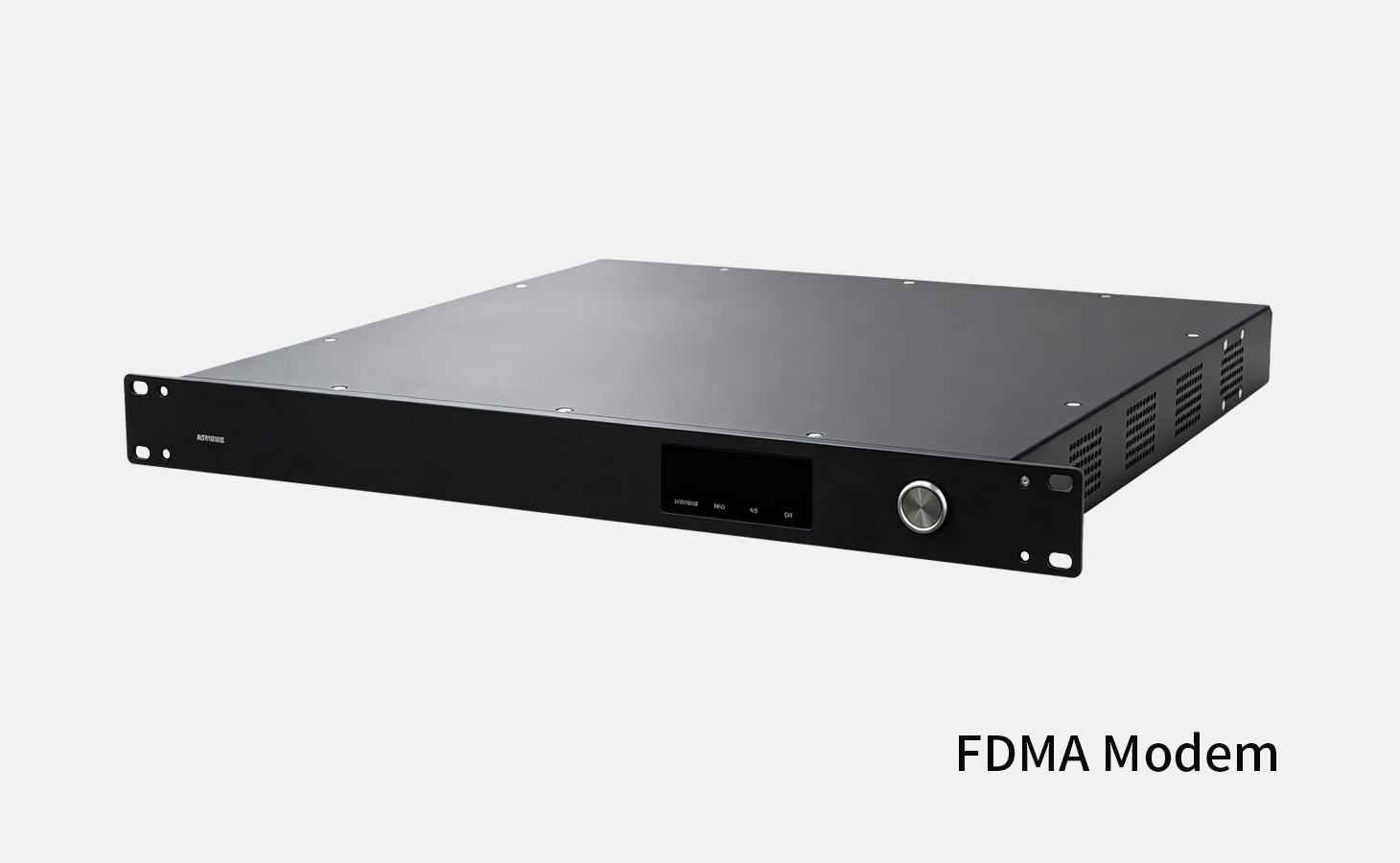

FDMA Modem

The FDMA modem supports symbol rates from 32Ksps to 40Msps, with a maximum information rate of 150Mbps, catering to various business bandwidth requirements. It also supports a 0.05 roll-off factor for traffic channels and can be equipped with PAMA functionality, reducing the number of channels needed for two ground stations from four to two by combining the 上行 and 下行 signals, significantly saving satellite bandwidth.

  • FDMA Modem

  • GENEW

Availability:

Product Description

The FDMA Modem is a high-performance satellite communication device with a maximum information rate of 150Mbps and symbol rates ranging from 32Ksps to 40Msps, fully meeting diverse business bandwidth needs. It features an ultra-low 0.05 roll-off factor for traffic channels and supports optional PCMA technology, which effectively cuts the required channels for ground stations by combining uplink and downlink signals, greatly saving satellite bandwidth. Additionally, it is compatible with both star-type and mesh-type networks, delivering flexible and efficient satellite communication services.

Product Feature

Maximum information rate up to 150Mbps

Supports ultra-low roll-off and PCMA technology

Supports star-type network, mesh-type network applications

PCMA technology is optional

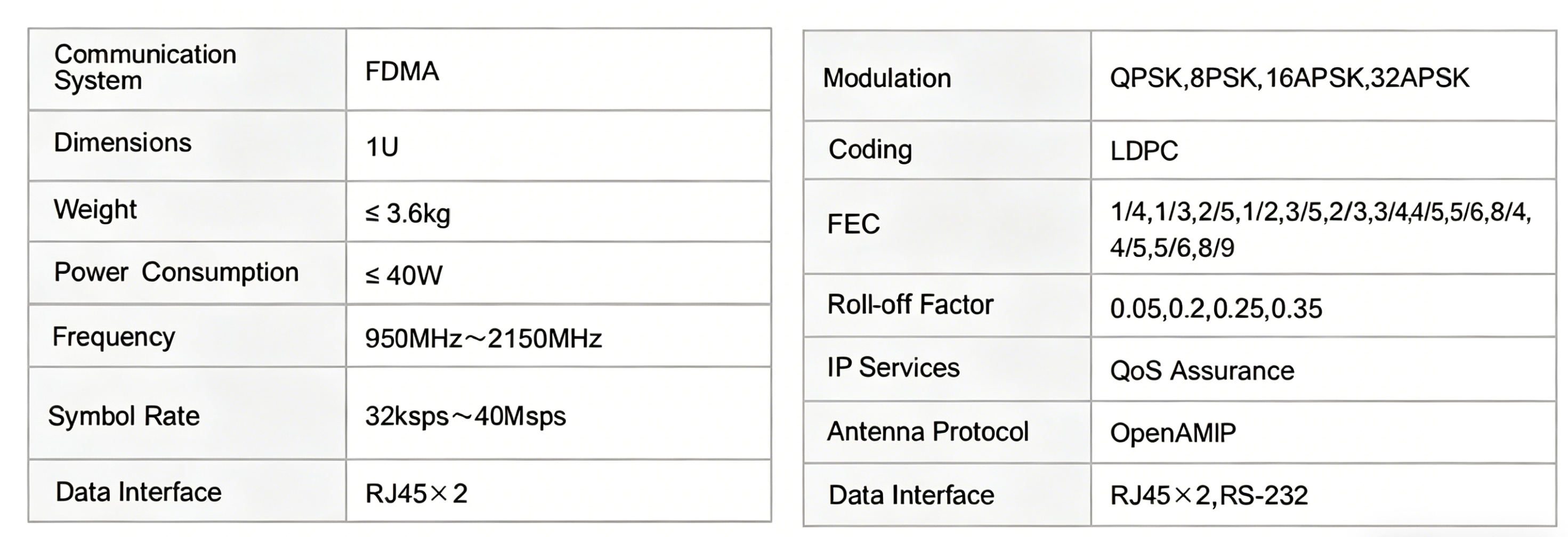

Technical Parameter

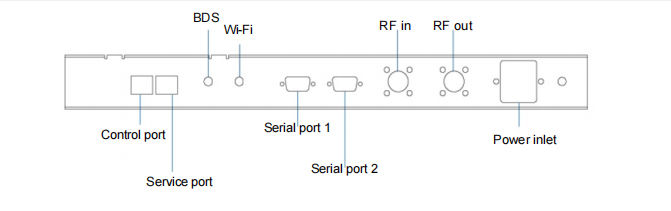

Interface
