HPT8000E

Name: HPT8000E
Brand: GENEW
Rating: 5.0 (33 reviews)

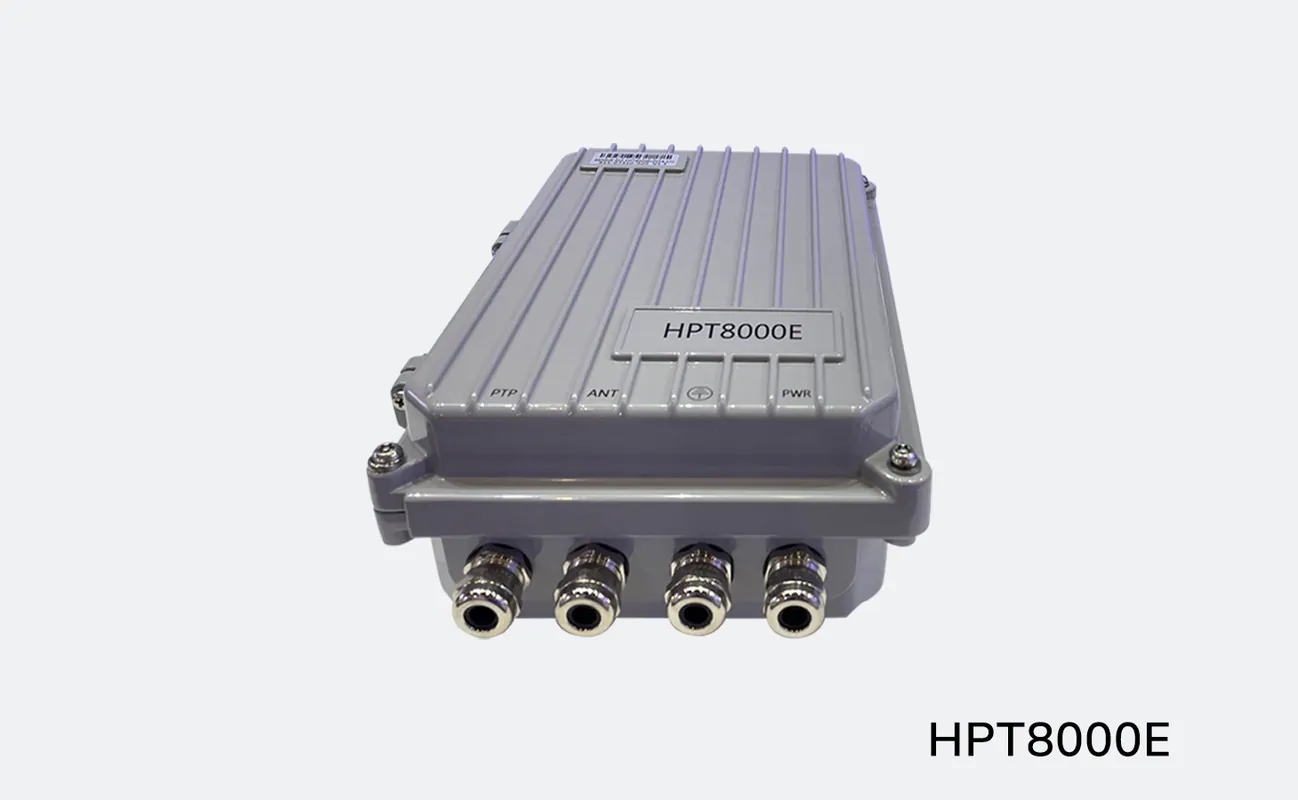

HPT8000E is a high-precision Grand Master (GM) designed to operate with PTP-compliant devices. It has built-in multi-mode Global Navigation Satellite System (GNSS) receiver and delivers IEEE 1588v2 PTP service over Ethernet fiber ports. HPT8000E is specifically designed for outdoor deployment with all-in-one compact form-factor. It is used as a Grand Master timing source providing for frequency and time synchronization in telecom, utility and mass transit applications.

Model:
HPT8000E
Brand:
GENEW


Availability:

Highlights

IEEE 1588v2 Grand Master
PRTC-B compliant
PTP profile: ITU-T G.8265.1, ITU-T G.8275.1,ITU-T G.8275.2
One-step and two-step
Integrated GNSS receiver & Compact outdoor device
System Compliance:Compliant with IP65;Compliant with VCCI;Compliant with CE*;Compliant with FCC(Part 15)

Specifications

Item	Technical Specification
Interface	1 x GNSS for GPS(QZSS)/GLONASS/Galileo /BEIDOU, support multi-mode GNSS2 x GE (SFP) for IEEE1588v2/PTP1* AC power input and 1* PGND
PTP Time Accuracy	≤ 40ns (conforms to G.8272 PRTC-B)
Holdover Accuracy	≤ 10μs for 24hrs≤ 1.5μs for 24hrs (optional)
Power consumption	14 W
Power supply	AC 90-250V, 50-60H
Size	306mm(D)204mm(W)105mm(H)
Weight	3.2kg
IP level	IP65
Operation temperature	-40℃ to 65℃
