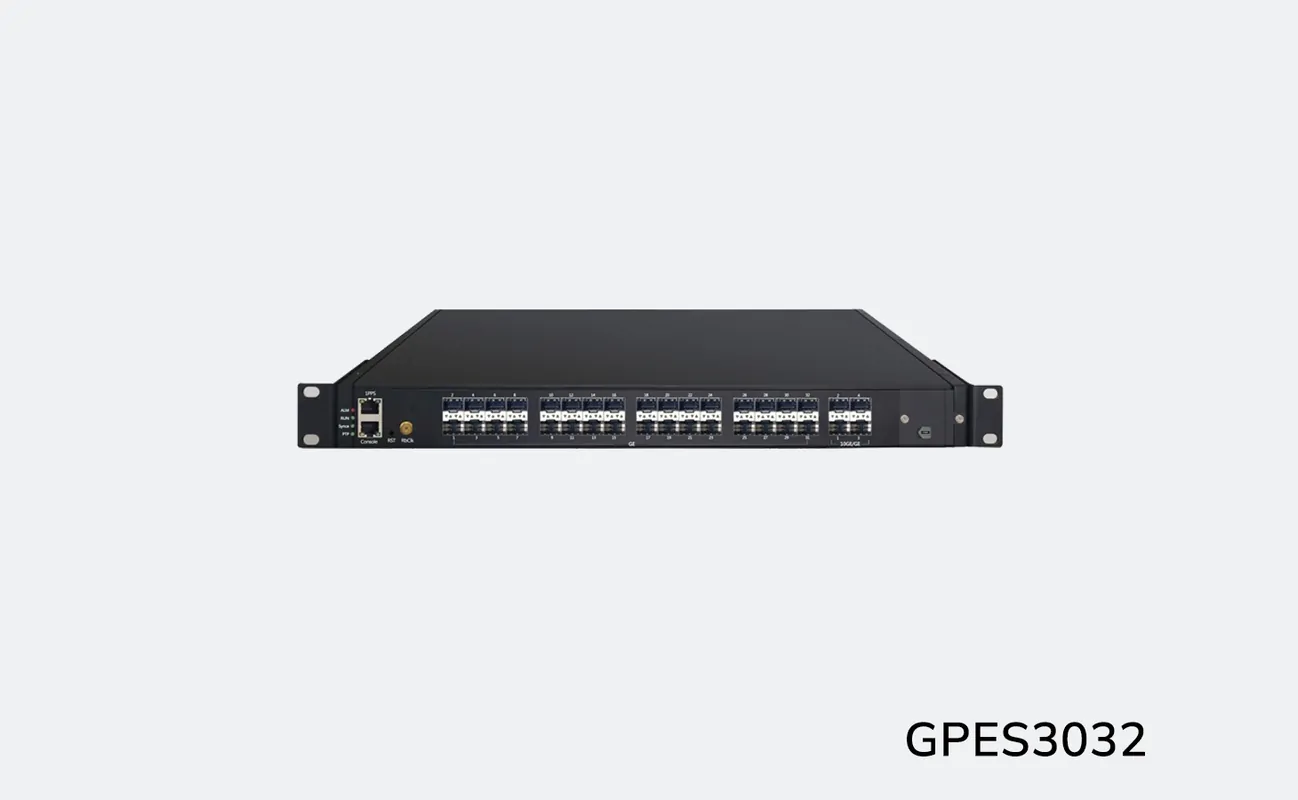

GPES3032

GPES3032 is a telecom-grade high-precision network synchronization device that supports IEEE1588v2,SyncE,POE+,full gigabit ports and layer2/layer3 function for flexible business application. It can provide high-precision and high-reliability time-frequency reference signal. It can provide 32 POE+ power output. The port density of GPES3032 is very high, so it can offer 36 GE ports (4 ports can be set to 10GE). The holdover performance of PTP protocol in 24hours is less than 50us. With optional DOCXO, the holdover performance of PTP protocol in 24hours can be less than 1.5us.
  • GPES3032

  • GENEW

Availability:

Highlights

Support 802.3AT/AF POE at all eight Ethernet electrical ports
Powerful 1588v2 packet process ability
Economy Business Solution
Strong holdover performance of PTP protocol

Specifications

ItemTechnical Specification
Uplink ports4 SFP+ 10GE/GE
User ports32 RJ45(GE)
1PPS output1 RJ45 (RS422)
External clock input1 SMA
Management PortRS232
Time accuracy≤±50ns
Power supply2 pluggable -48V DC power module forredundancy protection or AC 90V~250V, 50-60Hz
Power consumption40 Watts(equipment) + 36 Watts(SFP)
Size482mm (W) x 210mm (D) x 44mm (H)
Weight<5kg
