GS560B-48X6C
GENEW
|
| |
Product Details

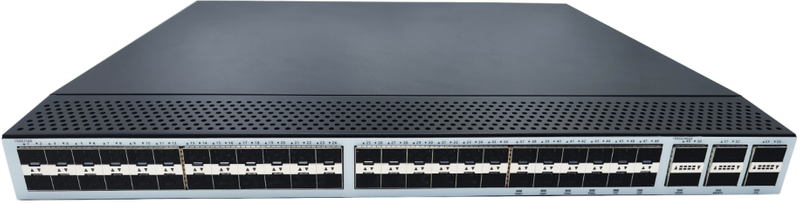

GS560B-48X6C provides the highest 10 Gigabit port density and maximum switching capacity in its class, supporting wire-speed forwarding on all ports. It also accommodates flexible access for both 10GE and 100GE connections and automatically recognizes the type of optical module installed, maximizing user investment protection and ensuring flexibility.
The switch is designed for high-density and high-bandwidth applications, this switch meets the demands of next-generation enterprise networks, data centers, and metropolitan area networks. It is suitable for network operators, campus Ethernet aggregation or access layers, data center access layers, and small to medium-sized enterprise core layers, offering comprehensive server access solutions for data centers.
Highlights
Specifications
Attributes | GS560B-48X6C |
Port | 48*1GE/10GE SFP+ 6*40GE/100GE QSFP28 |
Chipset | 98DX8548 (Marvell) |
Exchange Capacity | 2160Gbps |
Packet Forwarding Rate | 600Mpps |
Packet Buffer | 48Mbit |
MAC | 32K |
Fan | 2*Modular FAN |
| Memory and Storage | Memory: 4GB; Storage: 8GB |
Power | AC: 100～240V; 47/63Hz; DC: -20V ~ -60V |
Power Consumption | ≤220W |
Weight | ≤9kg |
Dimensions (W * D * H) mm | 440×410×44 |
| Environment Temperature | Working Temperature：-10℃～55℃ Storge temperature：-40℃～70℃ Relative Humidity: 5%~95%, non-condensing |
