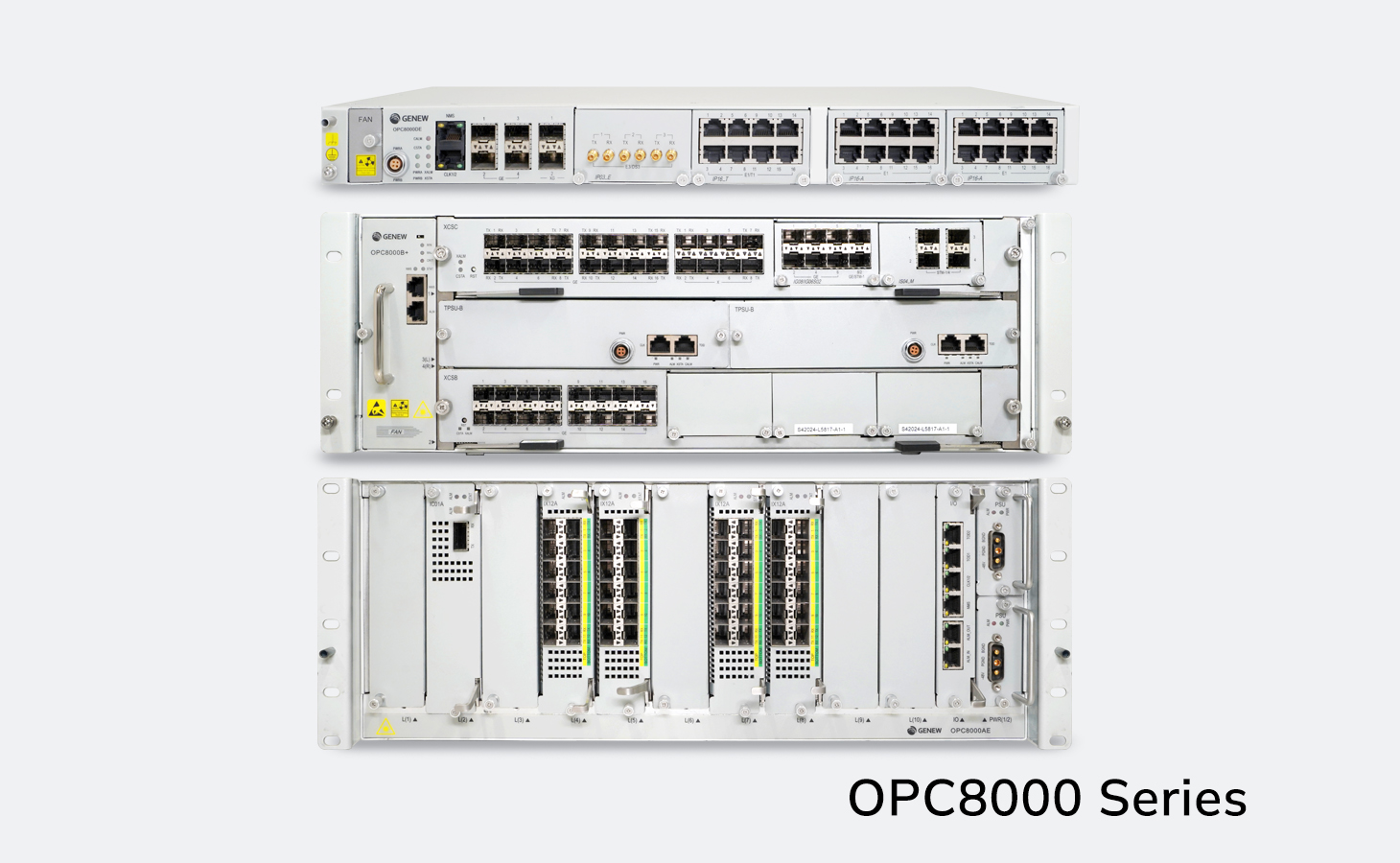

OPC8000 Series

Full series PTN products have been developed from 3G to 960G switching capacity, covering whole network section application from core to access, with native MPLS-TP technologies enabled, compliant to the latest MPLS-TP standard defined by IETF and ITU-T.PTN products provide ideal solution to the modern transport network, which is characterized by the explosive packet traffic volume, flexible traffic scheduling, and high reliability as traditional SDH networks.Thousands of the systems have been deployed in the field, covering both utility and telecom applications.PTN is designed for the telecommunication of different type's applications, including traditional carrier transport network, utility telecommunication network, and enterprise access and so on.
  • OPC8000 Series

  • GENEW

Availability:

Product Vedio

Highlights

Full portfolio covering core to access applications in the telecom network
Widely deployed system, proved by real application
Packet traffic oriented, with capability of the intelligent NMS

Specifications

Product Model

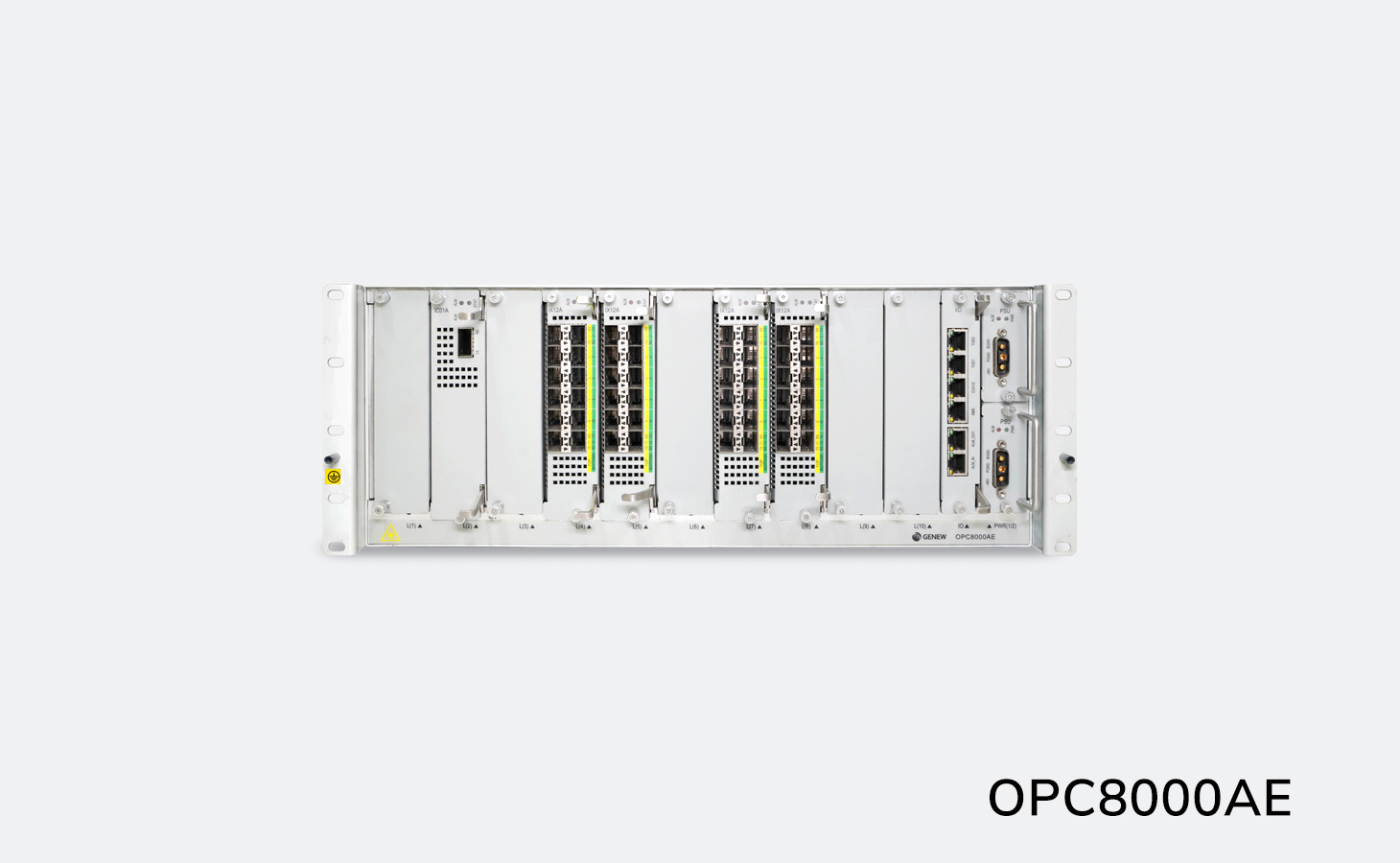

OPC8000AE

OPC8000B+

OPC8000DE

Maximum interface numbers

8*100GE; 95*10GE/GE

12*10GE;

64*GE/FE;

4*STM-64;

8*STM-16;

16*STM-4;

16*STM-1;

12*E3/DS3;

64*E1/T1(RJ45);

16*E1(optical);

4*10GE;

22*GE/FE;

2*STM-64;

4*STM-16;

8*STM-4;

16*STM-1;

12*E3/DS3;

64*E1/T1(RJ45);

16*E1(optical);

Switching capacity

960Gbps

220Gbps

62Gbps

Power consumption

<700 W

<255 W

<40 W

Power

-48V DC

-48V DC

110V AC/220V AC

-48V DC

Dimensions (mm) (WxDxH)

442x490x177

442x235x155

442x222x45

Weight

20kg

12.75kg

3.42kg

Working temperature

-5°C to 55°C

-5°C to 55°C

-5°C to 55°C


Typical Application

4G/5G base station service backhaul of telecom operators metro network;
IP based service access and transmission in the private network industry, such as government, bank, security, electric power, etc;
TDM migration for special industries.
