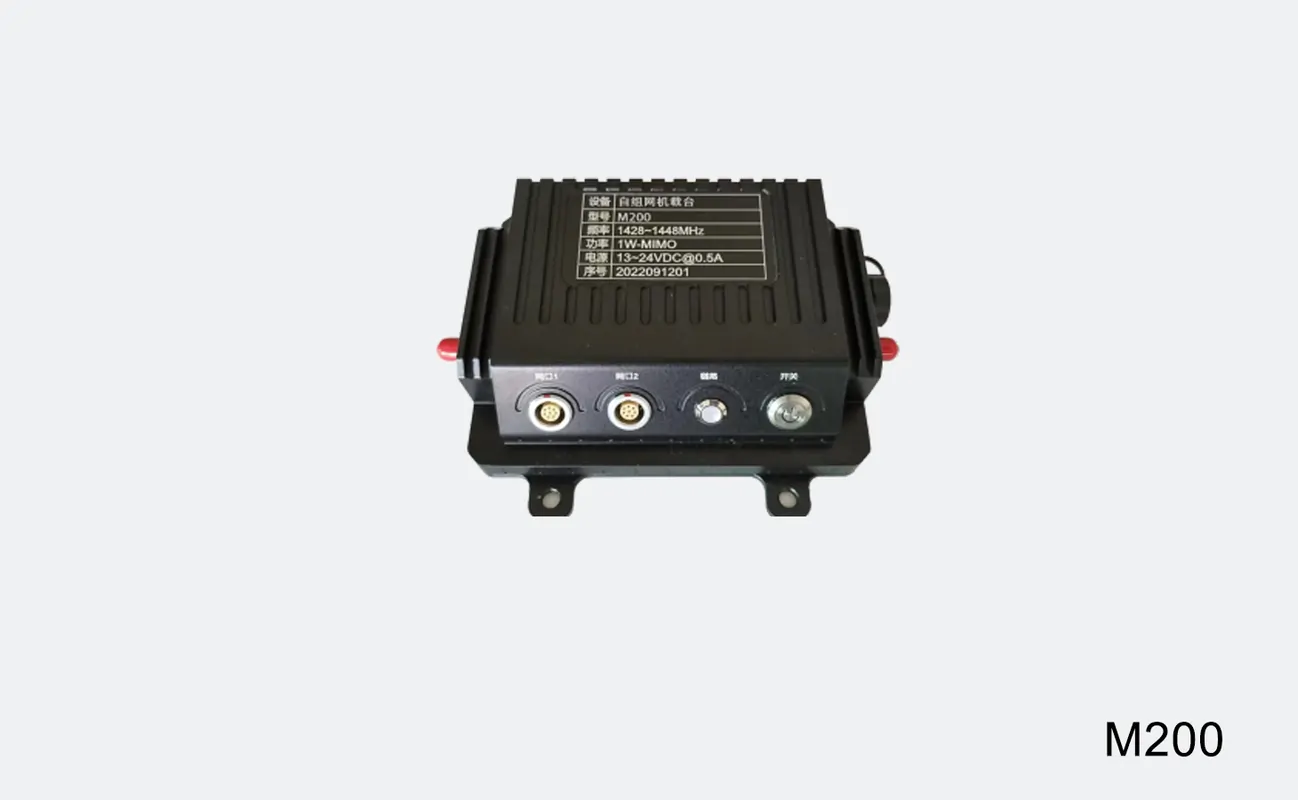

M200 Onboard Self-Organizing Radio

The M200 is a high-capacity broadband MESH self-organizing radio device designed for aerial deployment, specifically tailored for drones. It enables rapid setup and efficient wireless network extension, supporting voice, data, video, and location transmissions. This device is widely used in aerial photography, public safety, disaster relief, and emergency communication systems across sectors such as power, water, and border surveillance.

  • M200

  • GENEW

Availability:

Highlights

  • Multi-Service Support
    Real-time transmission of voice, video, data, and positioning information, with compatibility across all nodes and control terminals.
  • Flexible Networking
    Decentralized self-organizing network with configurable bandwidth, supporting multiple topologies including mesh and multi-point connections.
  • Interference Resistance
    Enhanced anti-jamming capabilities via optional wideband frequency hopping and ARQ error control for improved data reliability.
  • Portability and Ease of Use
    Plug-and-play functionality with real-time monitoring capabilities.

Specifications


Category
Parameter
Wireless Features
Frequency Band
1300–1500MHz (customizable)
Channel Bandwidth
Configurable at 2.5/5/10/20MHz; 40MHz optional
MIMO TechnologySpatial multiplexing, beamforming (TX/RX)
ModulationAdaptive TD-COFDM, BPSK/QPSK/16QAM/64QAM/256QAM
Transmission Rate1–100 Mbps (adaptive)
Digital Sensitivity-103dBm @ 5MHz BW
Transmit Power2 × 2W (adjustable)
Range≥10km (open), 500m–1km (obstructed)
Networking FeaturesNodes Supported
Up to 64 nodes
Single-Hop Latency
Average 10ms (20MHz BW)
Join TimeLess than 1 second
TopologyPoint-to-point, multi-point, or mesh, with auto-relay capability
EncryptionOptional DES, AES128/256
