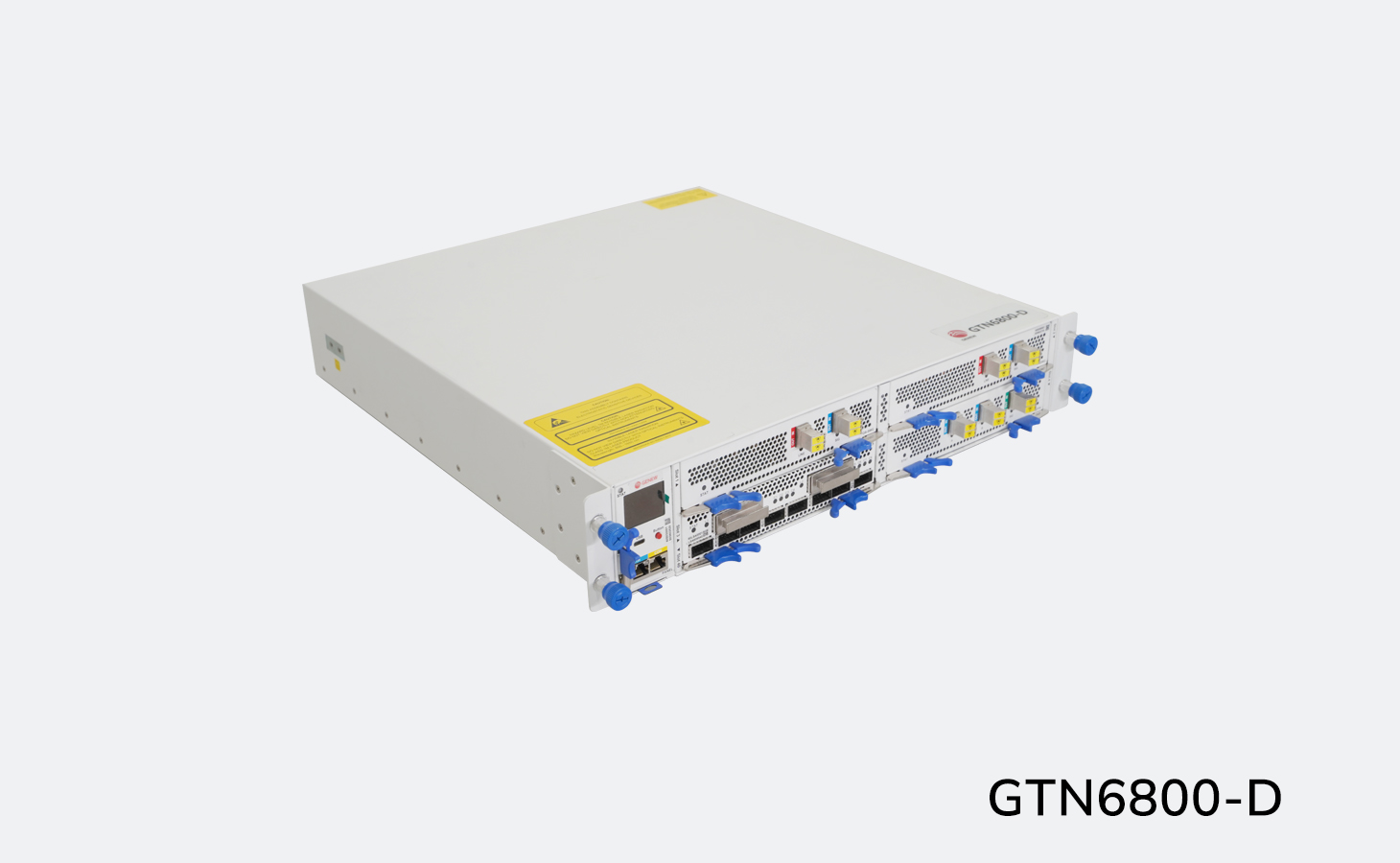

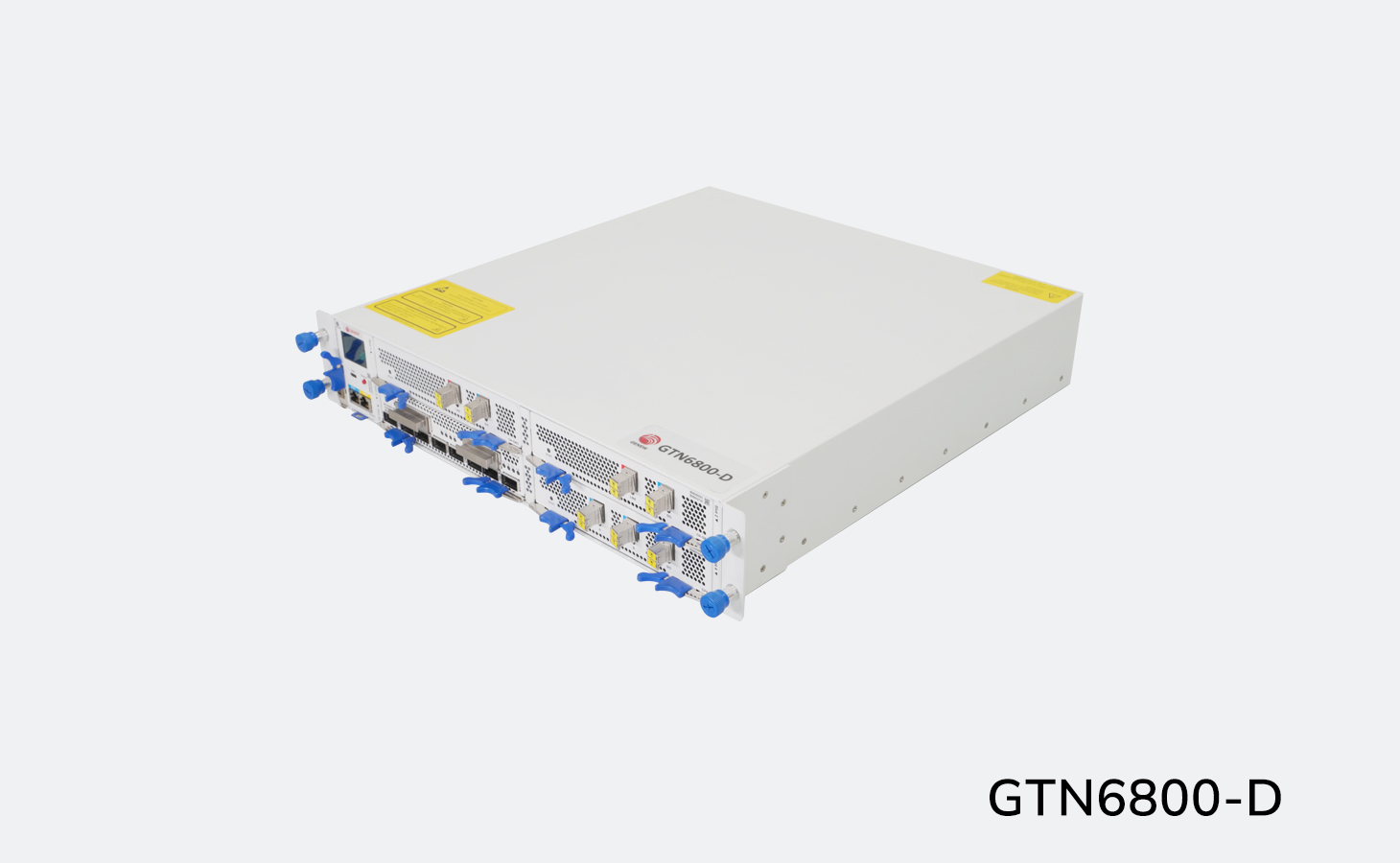

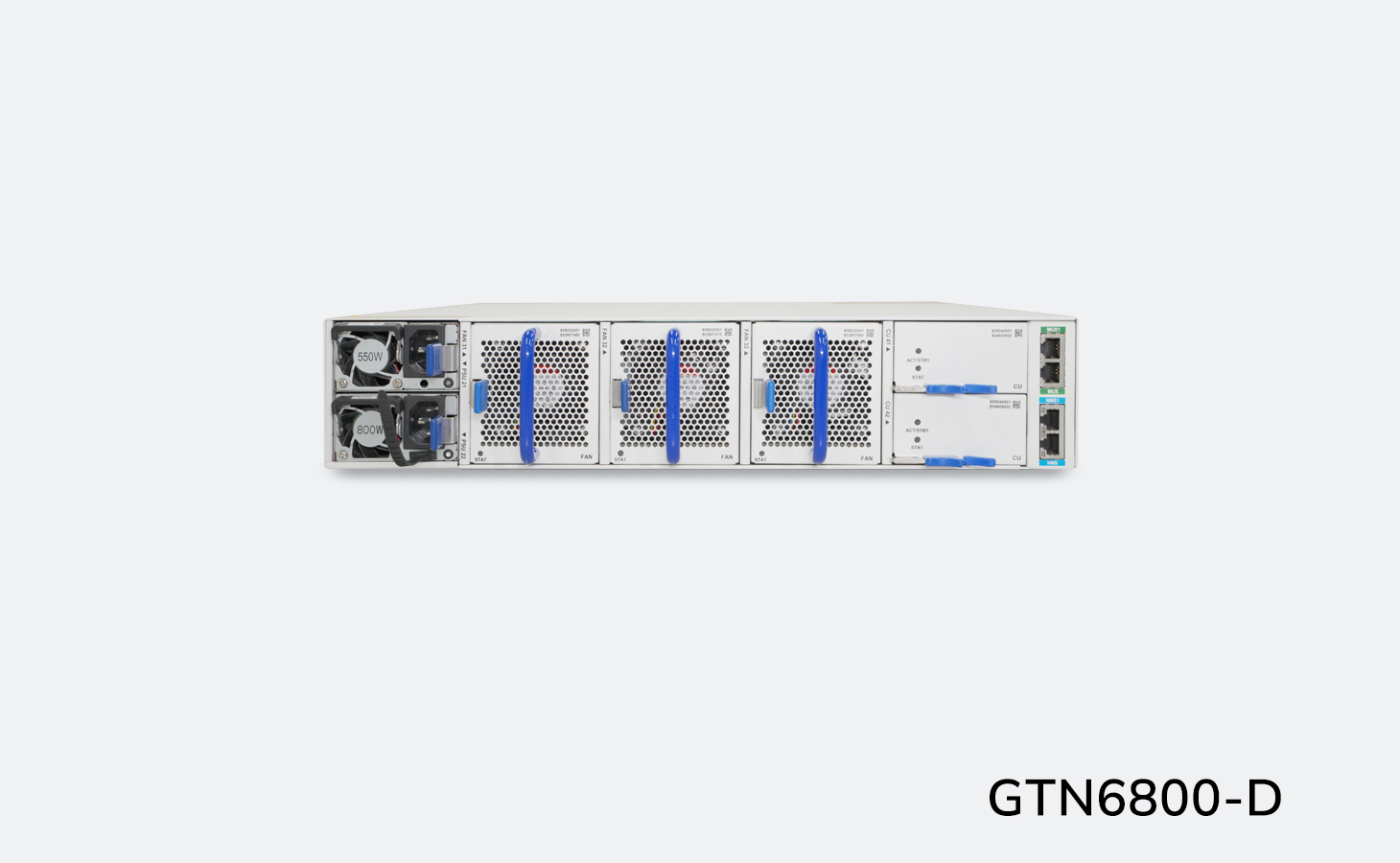

GTN6800-D

Name: GTN6800-D
Brand: GENEW
Rating: 5.0 (65 reviews)

GTN6800-D OLS(Open Line System) is designed for Open disaggregated optical networking, which is one of the industry trends as a way to find freedom from Vendor Lock-in. GTN6800-D OLS has Digital part and Optical part , 3.2T capacity in Sigle Rack. The 96*200Gbps, 64*400Gbps, 48*400Gbps applications can reach 19.2/25.6 Tbps in single fiber, leveraging Carriers or Internet players DCI link ability.

Model:
GTN6800-D
Brand:
GENEW


Availability:

Product Vedio

Highlights

Single optical fiber supports MAX 25.6T

Support OTN service access and management

9 degrees WSS

Standard Netconf/YANG model, support third-party SDN controller

Specifications

Items	Description
Dimension	483mm(W) * 473mm(D) * 88mm(H)
Power Supply	AC:90~264V,47~63Hz 550w/800wDC: -40 ~ -72V 550w
Consumption	550w/800w
UNI	32100Gbps(QSFP28),8010Gbps
NNI	8*CFP2-DCO, 400G/200G
Environment	Running condition: 0 ~ 40 CentigradeStore condition:-40 – 70 Centigrade

Typical Application

Data center interconnection；

Point to point and high-capacity data interconnection within metropolitan area or region.
