Unmanaged Network Switch GS100&110&120 Series

GS100/GS110/GS120 Series are high cos-effective unmanaged switch designed by Genew for the network in medium and small offices. Genew GS100/GS110/GS120 Series have eight models involving three series, 100M, gigabit uplink and full-gigabit, which satisfies the requirement of networks in different scales such as hotels, campuses, dormitories and other medium and small enterprises.
Availability:
Inquire

  • GS100 Series GS110 Series GS120 Series
  • Genew

 GS100/GS110/GS120 Series are high cos-effective unmanaged switch designed by Genew for the network in medium and small offices.

Genew GS100/GS110/GS120 Series have eight models involving three series, 100M, gigabit uplink and full-gigabit, which satisfies the requirement of networks in different scales such as hotels, campuses, dormitories and other medium and small enterprises.


Features:

Switching Characteristics

Non-block switching architecture and wire-speed forwarding supported by all ports;

Large-buffer and HD video;

IEEE802.3x full duplex flow control and Backpressure half-duplex flow control;

Multi-functional DIP (dial-up switch), satisfying the requirement of different networks.

Easy to use

Plug and play; no need of configuration;

Its LED indicates working status and error information.

Reliability

Integrated professional thunder-proof electric circuit, adaptable to the outdoor environment;

Complies with CE, FCC;

Compact and small, fit for water-proof cabinet in the outdoor monitoring scenarios and buildings;

0-50°C working temperature.

L2&2+ Switch GS100 GS110 GS120 series

Specifications:

Model

GS100-8T

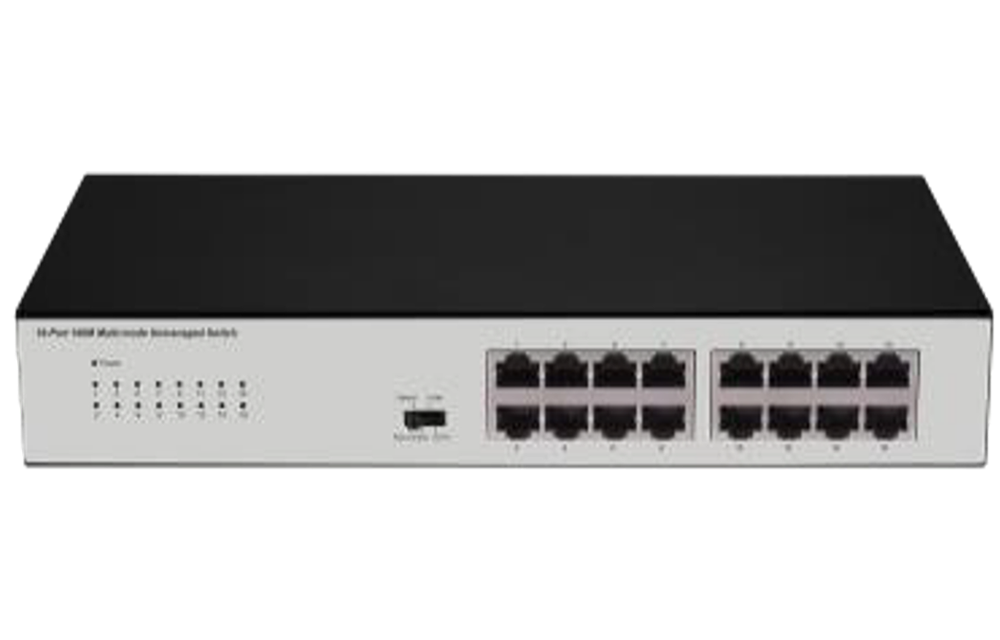

GS100-16T

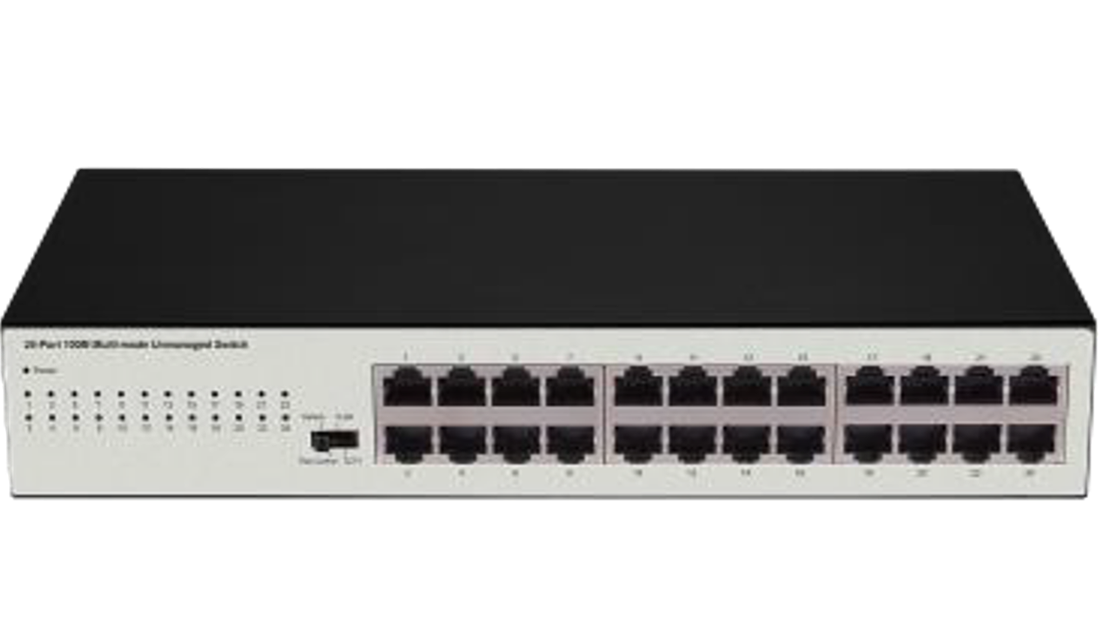

GS100-24T

GS110-9T1S

Switching   capacity

1.6G

3.2G

4.8G

5.6G

MAC

1K

8K

8K

8K

Interfaces

8 FE ports

16 FE ports

24 FE ports

8 FE ports

Uplink   interfaces

/

/

/

1 GE + 1 GE SFP port

Functional   DIP

/

Standard, Flow, Control,   Isolated, Extended

Standard,   Flow, Control, Isolated

/

Power   supply

Power adapter

Built-in AC

Built-in   AC

Built-in   AC

Dimensions   mm

(WxDxH)

140 x 67 x 26

280 x 125 x 44

280   x 125 x 44

280   x 125 x 44

Heat dissipation

Passive

Passive

Passive

Passive

Operating temperature

0°C-50°C, 10%-90% non-condensing

0°C-50°C, 10%-90% non-condensing

0°C-50°C, 10%-90% non-condensing

0°C-50°C, 10%-90% non-condensing

Storage temperature

-40°C-70°C,   5%-95% non-condensing

-40°C-70°C,   5%-95% non-condensing

-40°C-70°C,   5%-95% non-condensing

-40°C-70°C,   5%-95% non-condensing

Model

GS110-26T2S

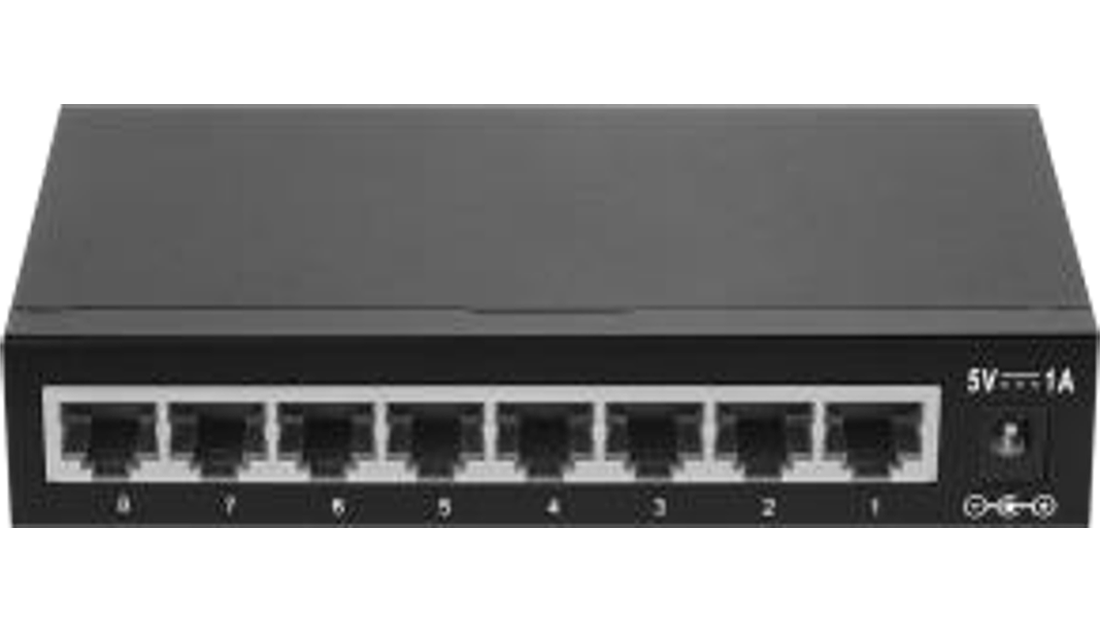

GS120-8T

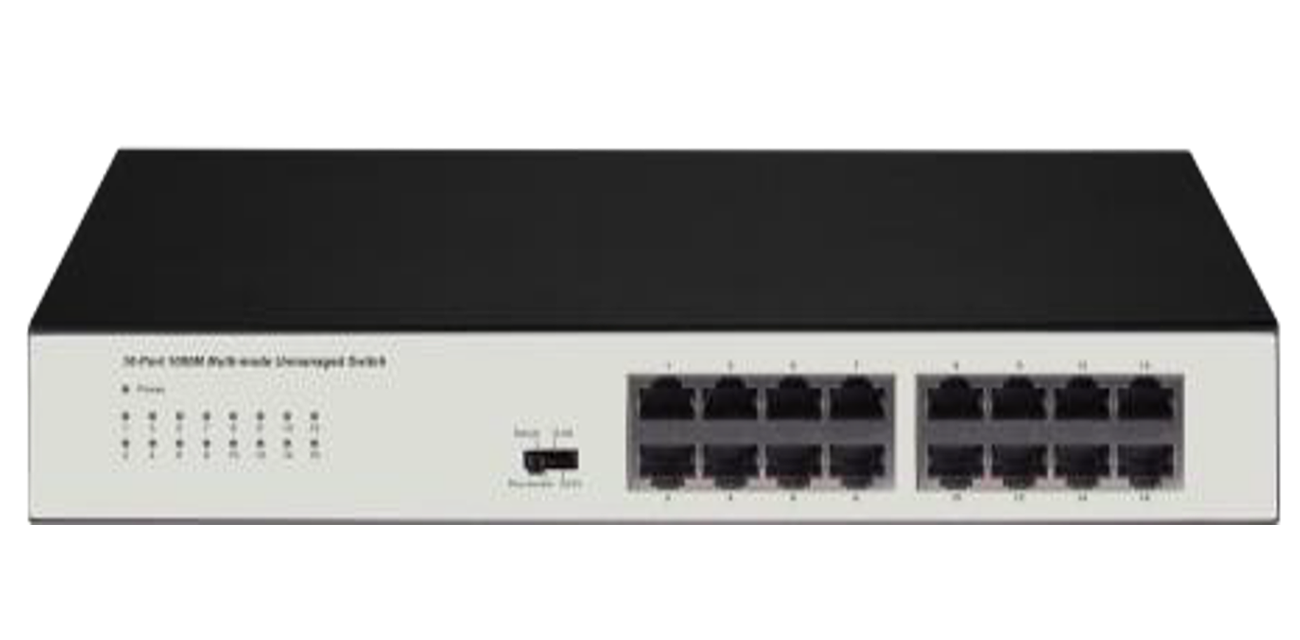

GS120-16T

GS120-24T2S

Switching capacity

8.8G

16G

36G

56G

MAC

16K

4K

8K

8K

Interfaces

24 FE ports

8 GE ports

16 GE ports

24 GE ports

Uplink interfaces

2 GE combo ports

/

/

2 GE SFP ports

Functional   DIP

/

/

Standard,   Flow, Control, Isolated

/

Power supply

Built-in   AC

Built-in AC

Built-in   AC

Built-in   AC

Dimensions   mm

(WxDxH)

440 x 210 x 44

140 x 78 x 28

280 x 125 x 44

440   x 210 x 44

Heat dissipation

Passive

Passive

Passive

Passive

Operating temperature

0°C-50°C, 10%-90% non-condensing

0°C-50°C, 10%-90% non-condensing

0°C-50°C, 10%-90% non-condensing

0°C-50°C, 10%-90% non-condensing

Storage temperature

-40°C-70°C,   5%-95% non-condensing

-40°C-70°C,   5%-95% non-condensing

-40°C-70°C,   5%-95% non-condensing

-40°C-70°C,   5%-95% non-condensing


Models:

Network Switch GS100 Series
