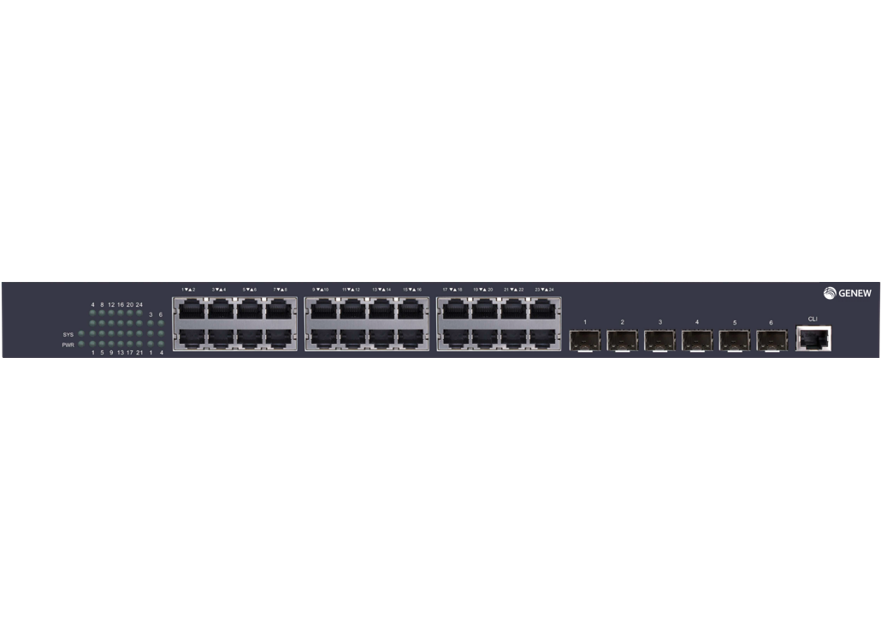

L3 10G Aggregation Switch GS335 Series

Genew GS335 Series is a new generation of aggregation 10G switches introduced by Genew. It is targeted at the IP MAN (metropolitan area network), campus networks and enterprise networks. It is developed on the basis of high performance hardware and software platform with Genew own independent intellectual property rights. It supports multiple services like IPv6, MPLS, VPN and network security based on L2/L3/L4 wire-speed switching service. It also supports nonstop upgrade, continuous forwarding, graceful restarting and redundancy protection. Genew GS335 Series has 3 models: GS335-24T6X, GS335-48T6X and GS335-24T24S6X. It supports up to 48*gigabit ports and 6*10GE ports.
Availability:
  • GS335-24T6X GS335-48T6X GS335-24T24S6X
  • Genew

Genew GS335 Series is a new generation of  aggregation 10G switches introduced by Genew. It is targeted at the IP MAN (metropolitan area  network), campus networks and enterprise networks. It is developed on the basis of high performance hardware and software platform with Genew own independent intellectual property rights. It supports multiple services like IPv6, MPLS, VPN and network security based on L2/L3/L4 wire-speed switching  service. It also supports nonstop upgrade,  continuous forwarding, graceful restarting and  redundancy protection.

Genew GS335 Series has 3 models: GS335-24T6X, GS335-48T6X and GS335-24T24S6X. It supports up to 48*gigabit ports and 6*10GE ports.


Features:

VSS (Genew Virtual Switch System):virtualize multiple physical devices into one. The  performance, reliability and management of the virtual  system are superior to the physical ones.

Improved Performance:VSS makes full use of each link in the physical devices,  which avoids STP blocking the link and protects the original  link to the maximum extent.

High Reliability:Based on the advanced distribution mechanism and efficient

cross-physical link aggregation link function, the logic  control plane, service control plane and service data plane  are separated. Thus, the device can support continuous  layer-3 routing forwarding, avoiding service interruption as a  result of a single point of failure.

Easy Management:VSS realizes single IP management, greatly improving the networking efficiency and lowering the operating cost.

NuBiz GS335 Series


Specifications:

Model

GS335-24T6X

GS335-48T6X

GS335-24T24S6X

Interface

24   GE ports,
    6*10G   SFP+ ports

48*GE   ports,
    6*10G   SFP+ ports

24*GE   ports,

24*GE   SFP ports,

6*10G   SFP+ ports

Console

1   RJ45 port

1   RJ45 port

1   RJ45 port

Backplane

216 Gbps

216   Gbps

216   Gbps

Forwarding   rate

126 Mpps

162 Mpps

162   Mpps

Chassis

Dimensions  (WxDxH)(mm)

440x350x44

440x350x44

440x350x44

Package

Dimensions  (WxDxH)(mm)

576x448x94

576x448x94

576x448x94

Power   supply

AC:   100V-240V, 50Hz±10%

75W

75W

150W

Total   output BTU (1000BTU/H=293W)

255.97

255.97

511.94

Noise@25°C(dBA)

45

MTBF(H)

>100,000

Forwarding   mode

Store-forward

Flash   (MB)

32

DRAM   (MB)

256

MAC

32K

Jumbo frame

9K

Routing table

IPv4

12K

IPv6

6K

ARP table

IPv4

12K

IPv6

2K

Total   SVI

1K






Layer3 Aggregation Swith GS335 Series
