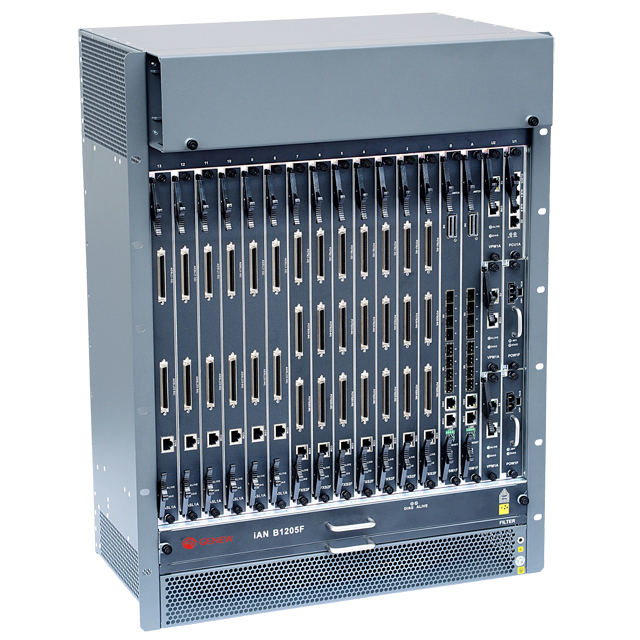

Genew 14RU High Density DLC and MSAN iAN B1205F

Genew iAN1200 series MSAN portfolio accommodates carrier-grade broadband access, telephony and data service interfaces in a single compact NGN platform, enabling operators to offer value added TRIPLE PLAY and broadband business services and migrate to NGN while maintaining the traditional telephony services. MSAN B1200 product line includes high (iAN B1205F/B1205E), medium (iAN B1205 /B1205v) devices that offer the benefit of converged access with an integrated TDM migration, POTS termination, DSL, Media Gateway and Ethernet/ xPON uplinks on the same platform.

  • iAN B1205F


B1205F is a cost effective & versatile Digital Loop Carrier (DLC) and Multi Service Access Node (MSAN) optimal solution from Genew that provides a unique set of capabilities enabling service providers to deliver the most competitive triple play service offerings. It enables service providers to smoothly migrate to IP based next-generation applications while continuing to offer traditional TDM based services to customers.

The B1205F supports a range of technologies such as POTS, ADSL2/ADSL2+, VDSL2, SHDSL(EFM) which allows the service providers to offer highly interactive and bandwidth intensive applications. B1205F acts as a traditional TDM based DLC, IPDSLAM, Media Gateway platform rolled into one.


  • SIP ,H.248/MEGACO VoIP-based Basic services

  • Supplementary services and Centrex services

  • T.30 ,T.38 Fax Relay over IP

  • PSTN interface: V5.2/VoIP

  • E1 based network interface for TDM transport, support up to 16 E1

  • Hot-redundant CSM, hot-redundant POW, 2 clock input and 2 clock output

  • State of the art proven Netman 4000 OMC-A EMS

  • ADSL2+&VDSL2&SHDSL support as per ITU-T standards

  • Annex A/ Annex B/Annex L/Annex M IP-DSLAM

  • IPTV applications using by xDSL


  • Modular architecture: 64 to 3744 ports per node

  • 14RU ESTI Depth Compliant chassis

  • Versatile customer Interfaces: ADSL2+, VDSL2, POTS, E1, SHDSL(EFM)

  • Transport/Trunk: GE, E1

  • Supports combo subscriber port: IVD (Integrated ADSL2+ & POTS Module)

  • Versatile solution for TDM/IP Based applications

  • Seamless migration from V5/AN to VoIP/AG

  • Redundant Control, Switching & Power Modules with Hot redundancy. (All active calls are preserved)

  • Up to 28Mbps capacity per DSL subscriber

  • Inherits QoS and other functionality from proven iAN8K B1000

  • Built-in loop test for voice-band and broadband

  • ETSI 300mm depth compliant

  • CE, FCC,VCCI compliant

  • Cascading architecture: up to 3 shelves Cascading



Hardware Specification

Size: 483mm (W) x 320mm (D) x 620mm (H)

Weight: 16.4 Kg

Mounting: 19” inch Rack mount, 14RU

Power: DC: -40V to -60V / Dual Redundancy

System Capacity

Single Chassis - Up to 1248 POTS (VoIP or V5)

Single Chassis - Up to 832 ADSL2+ ports

Single Chassis - Up to 416 IVD (ADSL2+ POTS combo)

Single Chassis - Up to 416 VDSL2

Single Chassis - Up to 312 SHDSL(EFM)

Cascading Chassis - Up to 3744 POTS (VoIP or V5)

Cascading Chassis - Up to 2496 ADSL2+ ports

Cascading Chassis - Up to 1248 IVD(ADSL2+ POTS combo)

Cascading Chassis - Up to 1248 VDSL2

Cascading Chassis - Up to 936 SHDSL(EFM)

Shelf Configuration

21 slots per chassis

2 slots for redundant Control & Switching Module (CSM in Master Shelf/EBAM in Slaver Shelf)

4 Flexible slots for:

- Peripheral Control Unit (PCU)

- E1 Module (E1M)

- Voice Packetization Module (VPM)

13 universal slots for Subscriber modules: FXS, ASL, VSL, IVD, HDSL

2 slots for redundant Power Modules (POW)

Management Capability

Genew Netman 4000 OMC-A

North Bound Interface (NBI)

SNMP based network managementTelnet


 Model  Description
 iAN B1205F  14U; Super high desity - 13 slots; Support cascading by TDM
 iAN B1205E  8U; High density - 10 slots - POTS, ADSL2/ADSL2+, VDSL2, SHDSL(EFM)
 iAN B1205VE    8U; High density - 10 slots - GPON, SHDSL, VDSL2 with vectoring and voice
 iAN B1205V    5U; Medium density - 5 slots - GPON, VDSL2 combo
 iAN B1205  5U; High density - 5 slots - POTS, ADSL2/ADSL2+, VDSL2, SHDSL(EFM)
 iAN B1202  2U; Low density - 4 slotss - POTS, (ADSL/ADSL2/ADSL2+
