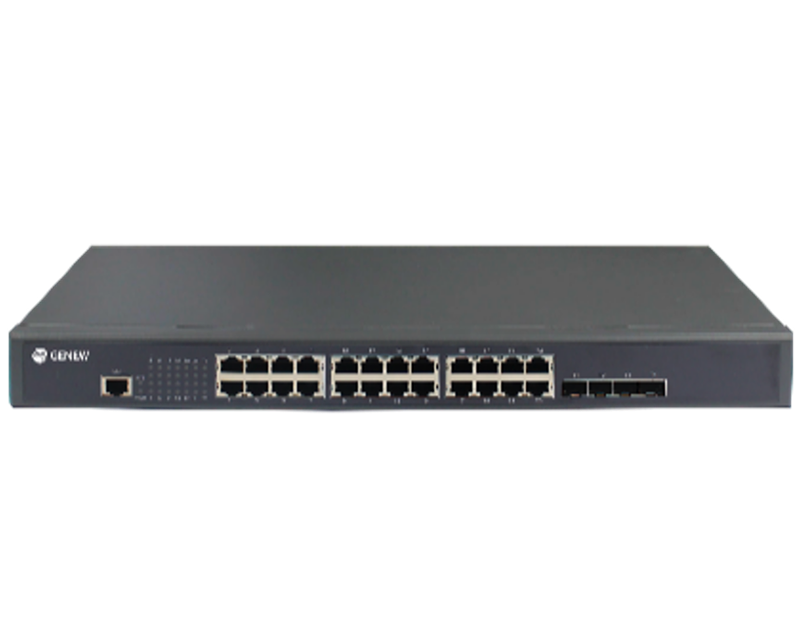

Carrier Level 10G Aggregation Managed Network Switch GS235

GS235 L3-lite Series is a next-generation aggregation 10GE switch introduced by Genew. It is targeted at the IP MAN (metropolitan area network), government and enterprise networks, Internet café and disk- less working environment.
Availability:
Quantity:
  • GS235-24T4X GS235-24S8T4X GS235-48T6X
  • Genew

GS235  L3-lite  Series  is  a  next-generation aggregation  10GE  switch  introduced by  Genew.  It  is  targeted  at  the  IP  MAN (metropolitan area network), government and enterprise networks, Internet café and disk- less working environment. It is developed on the basis of high performance hardware and ROS  -  a  software  platform  with  Genew own independent intellectual property rights. It supports functions such as powerful ACL, flexible QinQ, 1:1 or N:1 VLAN switching, Ethernet OAM,  carrier-level  QoS  and  industry-level 10GE Ether-ring, ensuring this switch series meets application requirements in all kinds of complicated sites. It also supports layer-3 routing protocol.
Genew GS235 L3-lite Series has 3 models: GS235-24T4X, GS235-24S8T4X and GS235-48T6X.


Innovative Virtual Cluster Switching Technique
Innovative VSS (Virtual  Switch  System):GS235  L3-lite  Series  virtualizes  multiple physical devices into one. The performance, reliability and management of the virtual system are superior to the physical ones.

Improved  Performance: VSS  makes  full  use  of each link in the physical devices, which avoids STP blocking the link and protects the original link to the maximum extent.

High Reliability:Based on the advanced distribution mechanism  and  efficient  cross-physical  link aggregation  link  function,  the  logic  control  plane, service  control  plane  and  service  data  plane  are separated. Thus, GS235 L3-lite Series can support continuous  layer-3  routing  forwarding,  avoiding service interruption as a result of a single point of failure.

Easy  Management : VSS  realizes  single  IP management,  greatly  improving  the  networking efficiency and lowering the operating cost.

L2&2+ Switch NuBiz GS235 Series

Specification:

Model

GS235-24T4X

GS235-24S8T4X

GS235-48T6X

Interface

24*GE TX

4*10GE/GE SFP+

24*GE SFP

8*GE   TX combo

4*10GE/GE   SFP+

48*GE TX

6*10GE/GE SFP+

Console(RJ45 )

1

1

1

Backplane(Gbps)

128

128

216

Forwarding   rate(Mpps)

96

96

162

Chassis

Dimensions   (WxDxH)(mm)

440x180x44

440x280x44

440x280x44

Weight(KG)(empty   )

2.6

4

4.3

Package

Dimensions   (WxDxH)(mm)

500x320x80


576x448x94


576x448x94

Weight(KG)

3.9

5.2

5.5

Power   consumption

no-load

<22W

<18W

<25W

full-load

35W

<38W

<40W

Power   supply

AC:   100V-240V, 50Hz±10%

45W

45W

45W

Total   output BTU (1000BTU/H=293W)

           153.58






Fan   number







Noise@25°C(dBA)







MTBF(H)







Forwarding   mode







Flash   (MB)







DRAM   (MB)







MAC







Buffer   size(MB)







Jumbo   frame


















Models:

10GE Aggregation Network Switch GS235


Application:

10GE Switch GS235 Application
