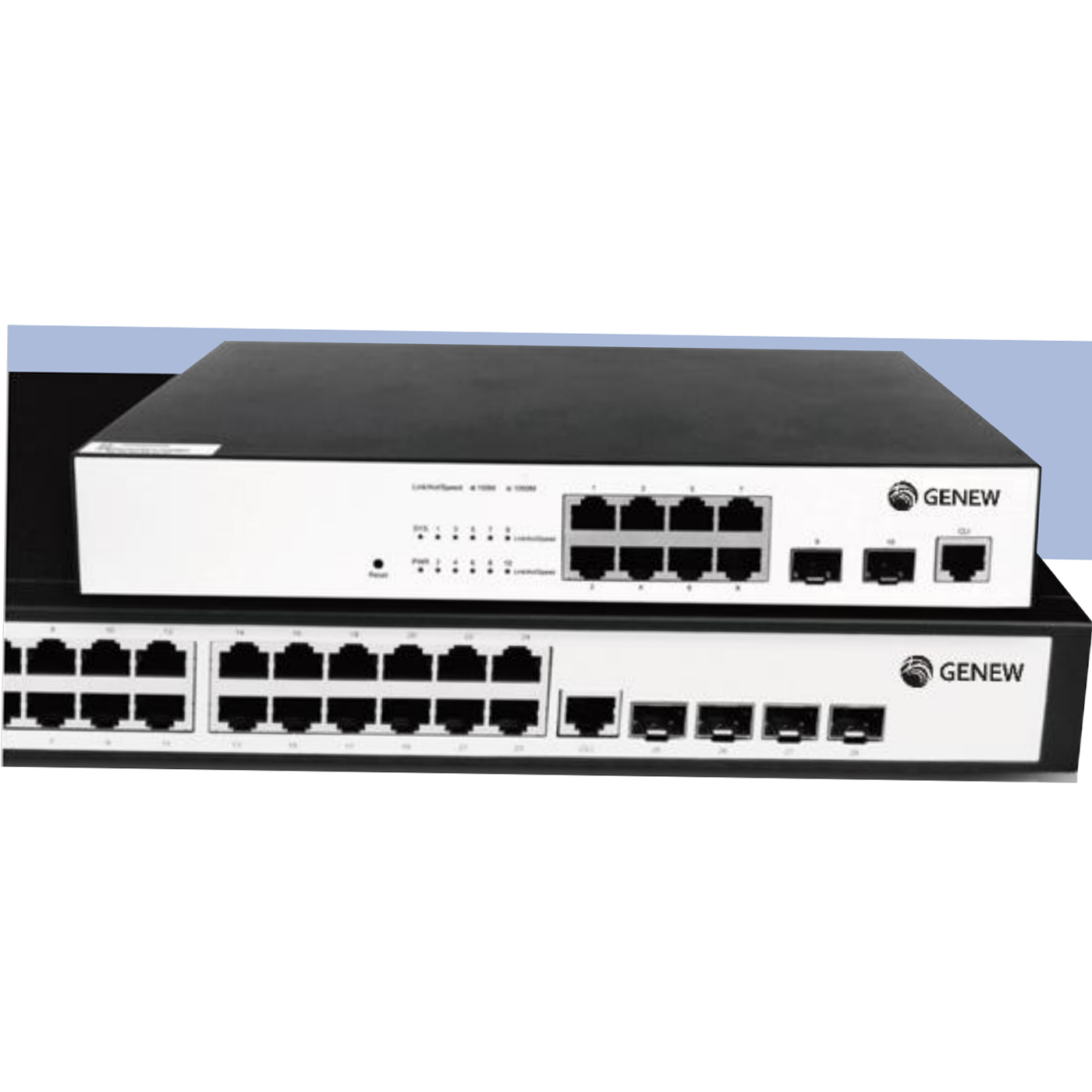

8/24 GE Ports Managed Network Switch GS220

Genew NuBiz GS220 Series is a new-generation intelligent gigabit access switch designed for carrier's IP MAN and enterprise networks. Based on the new-generation high-performance hardware and NuBiz platform, it supports functions such as ACL, QinQ and QoS. Its simple management mode and flexible installation can meet the requirement of any complicated scenarios.
Availability:
Inquire

  • GS220-8T2S GS220-24T4S
  • Genew

Genew NuBiz GS220 Series is a new-generation intelligent gigabit access switch designed for carrier's IP MAN and enterprise networks. Based on the new-generation high-performance hardware and NuBiz platform, it supports functions such as ACL, QinQ and QoS. Its simple management mode and flexible installation can meet the requirement of any complicated scenarios.


Carrier-Level Ethernet Access Switch

GS220 Series supports the carrier-level Ethernet-ring protection protocol with less than 50ms recovery time, STP/RSTP/MSTP, backup uplink ports, and LACP link aggregation to cater to the requirements of high reliability of carriers;

GS220 Series has powerful ACL functions to access and control L2-L7 data based on physical port, providing carriers flexible and various policy control methods;

GS220 Series supports In-Service Software Upgrade (ISSU) to ensure the unremitting data forwarding during system upgrade;

GS220 Series supports various L2 multicast functions such as IGMP-snooping, fast-leave and MVR to fully meet the operation requirements of carrier’s IPTV.

L2&2 Switch GS220 Series

Specification:

Model

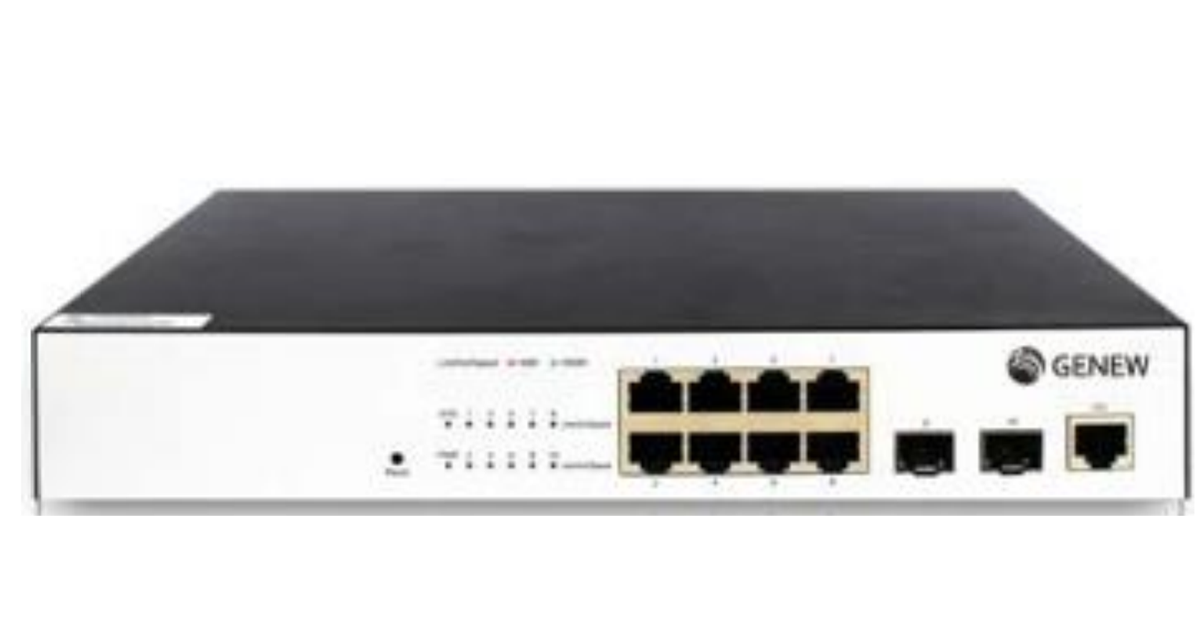

GS220-8T2S

GS220-24T4S

Interface

8   GE ports,
    2 GE   SFP   ports

24   GE ports,
    4 GE   SFP   ports

Console

1   RJ45 port, 1 RST button

1   RJ45 port, 1 RST button

Backplane

20 Gbps

56 Gbps

Forwarding   rate

15 Mpps

42 Mpps

Chassis

Dimensions  (WxDxH)(mm)

280x180x44

440x210x44

Weight(KG)(empty   )

1.55

2

Package

Dimensions  (WxDxH)(mm)

346x289x92

555x295x88

Weight(KG)

2.55

3

Power   consumption

no-load

<3W

<7W

full-load

10W

20W

Power   supply

AC:   100V-240V, 50Hz±10%

15W

25W

Total   output BTU (1000BTU/H=293W)

51.19

85.32

Fan   number

no

Noise@25°C(dBA)

0

MTBF(H)

>50,000

Forwarding   mode

Store-forward

Flash   (MB)

16

DRAM   (MB)

128

MAC

8K

Buffer   size(MB)

4.1

Total   SVI

10




Models:

Network Switch GS220Application:

Network Switch GS220 Application
